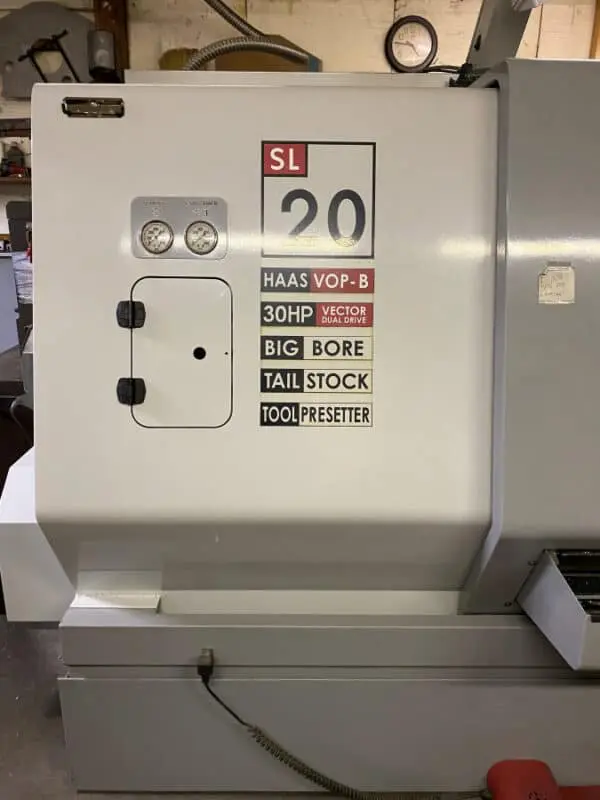

Haas SL-20TB – 2007

Haas SL20T Big Bore CNC Turning Center

Swing Over Front Apron 23″
Swing Over Cross Slide  9.5″
X-Axis Travel  8.45″
Z-Axis Travel 20″
Rapid Traverse Rates 710
Max Bar Capacity  2.5″
Dist Between Centers 24″
Max Turning Dia 10”
Max Turning Length 19″
Spindle Speeds 3,400 RPM
Spindle Motor 30 Peak HP
Spindle Bore  3″
Draw Tube Bore 2.56″
Turret Stations 10
Machine Weight 9,000 Lbs
Machine Dimensions 126.5″L x 74″W x 72″H

Haas CNC Control
Big Bore Option
30HP
Tailstock
Tool Presetter
Chip Conveyor
10” 3-Jaw Hydraulic Chuck
