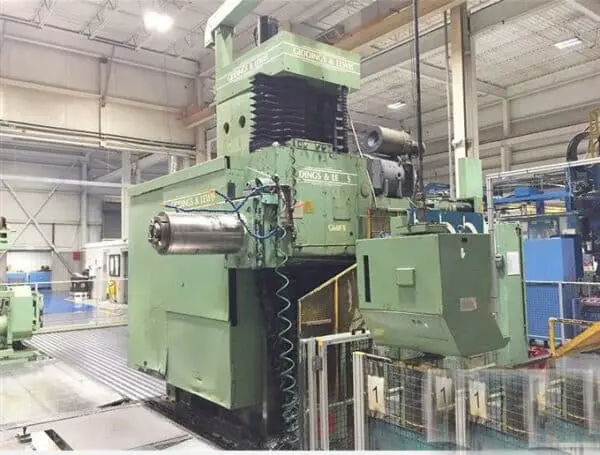

GIDDINGS & LEWIS G60-FX 6″ HBM – 1996
Overview
Description
Giddings & Lewis G60FX 6″ CNC Floor Type Horizontal Boring Mill
CAPACITY:
SPINDLE DIAMETER 6″
SPINDLE TAPER NO.50 ANSI
X-AXIS COLUMN TRAVEL 408″
Y-AXIS VERTICAL HEAD TRAVEL 91″
Z-AXIS SPINDLE TRAVEL 48″
SPINDLE DRIVE MOTOR 50 HP
SPINDLE SPEED RANGE, INF.VARIABLE 12-2500 RPM
TRAVERSE RATE, X-AXIS 400 IPM
TRAVERSE RATE, Y-AXIS 450 IPM
FEED RATES, X, Y & Z AXES 150 IPM
ELECTRICS 480V 3PH 60 CYCLE
Equipped With
GIDDINGS & LEWIS 8000M-B CNC CONTROL
80 TOOL AUTOMATIC TOOL CHANGER
INDEPENDENT AC ELECTRIC SERVO FEED DRIVES
INFINITELY VARIABLE SPINDLE SPEEDS
LUBRICOOL CHILLER UNIT FOR HEADSTOCK LUBE OIL
ADJUSTABLE PENDANT MOUNTED CRT
THRU-SPINDLE AND FLOOD COOLANT
POWER DRAW BAR, COLLET TYPE
CHIP CONVEYOR AND ELEVATOR
OPERATORS PLATFORM
HEAVY DUTY MEEHANITE CASTING CONSTRUCTION
NON-METALLIC WAY LINERS
DOUBLE MOTOR PINION DRIVE ON X-AXIS RACK
SOFTWARE FOR CH-8 GIDDINGS & LEWIS CNC FACING HEAD
AUTOMATIC LUBRICATION OF ALL MACHINE WAYS
50 HP SPINDLE DRIVE MOTOR
