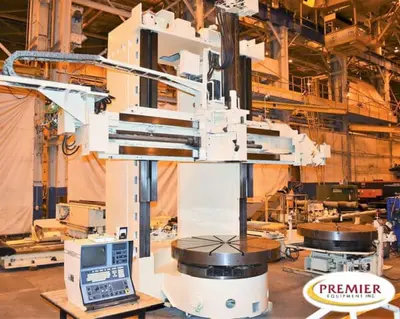

Giddings & Lewis 72” Series 514 VBM – 1998
Overview
G&L 72
TABLE DIAMETER 72″
MAXIMUM TURNING DIAMETER 84″
MAXIMUM HEIGHT UNDER CROSS RAIL 96″
RAM VERTICAL TRAVEL, X-AXIS 62″
VERTICAL TRAVEL OF CROSS RAIL 54″
RAM TRAVEL, LEFT OF CENTER 54.5″
RAM TRAVEL, RIGHT OF CENTER 48.5″
RAM CROSS SECTION 7.875″
TABLE SPEEDS, INF. VARIABLE 2 RANGES
TABLE SPEEDS, HIGH RANGE 9 TO 200 RPM
TABLE SPEEDS, LOW RANGE 2-50 RPM
RAPID TRAVERSE, RAIL HEAD X & Z AXIS 400 IPM
FEED RATES, VARIABLE X & Z AXES .01 TO 150 IPM
RAIL ELEVATING RATE 30 IPM
Equipped With
GIDDINGS & LEWIS 8000 CNC CONTROL
12-STATION AUTOMATIC TOOL CHANGER
(2) 72″ 4-JAW INDEPENDENT MANUAL CHUCKS WITH PALLET SHUTTLE
POWER DRAW BAR RAM W/#60 ANSI B5.50 TAPER
ELEVATING CROSS RAIL
EXTENDED COLUMN HEIGHT
FLOOD COOLANT SYSTEM
ADJUSTABLE CROSS RAIL WITH POWER ELEVATION AND CLAMPING
HARDENED WAYS ON CROSS RAIL
INDEPENDENT AC ELECTRIC SERVO FEED DRIVES
3″ DIAMETER BALL SCREWS
INDUCTOSYN SCALE FEEDBACK
PROGRAMMABLE RAIL HEIGHT ADJUSTMENT
AUTOMATIC RAIL LEVELING
NUMERIPROBE IN PROCESS GAUGING
NUMERIDAPT ADAPTIVE CONTROL
TOOL TIP PROBING
CHIP CONVEYOR WITH ELEVATOR
75 HP MAIN MOTOR
