Geminis GT5 G2 – 2013
Overview

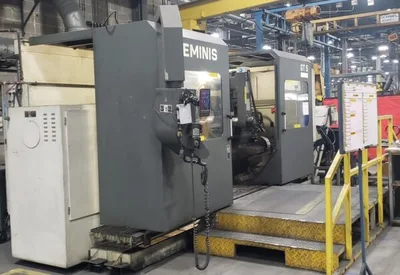

Geminis GT5G2 48″ x 78″ Flat Bed CNC Lathe with Y Axis
Specifications
CNC Control yes
Type of CNC Control FANUC
Chuck Size 40 inches
Swing 48 inches
Center Distance 78 inches
Bar Capacity 4 inches
Main Motor 50 HP
Turret Capacity 4
Tailstock yes
Y Axis yes
Power 10 horsepower
# Axis 4
SWING OVER BED: 48″
SWING OVER CROSS SLIDE: 33.5
DISTANCE BETWEEN CENTERS: 78″
MAX WEIGHT BETWEEN CENTERS: 10,000 LBS.
SPINDLE POWER: 50 HP
MAX MAIN SPINDLE RPM: 1,400
LIVE SPINDLE POWER: 10 HP
LIVE SPINDLE TAPER: NO. 50
Equipped With
40″ 4 JAW CHUCK
4 POSITION TURRET
C AXIS POSITIONING
REMOVEABLE Y AXIS LIVE MILLING ATTACHMENT
CHIP CONVEYOR
COOLANT WITH FILTRATION SYSTEM
