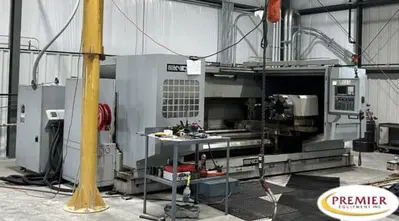

Ganesh GT44120 Lathe – 2013

Swing over Bed: 44″ (1,118 mm)
Swing over Cross Slide: 27.60″ (700mm)
Gap Opening Width: 23.43″ in front of spindle face
Distance between centers: 120″
Bed Width: 32″ (810 mm)
Max workpiece wt cap (Chk only): 6,600 lbs
Spindle Motor: 30 HP
Spindle Speeds: 6-420 RPM
Spindle Bore: 6″
Spindle Nose: A2-11
Spindle ID Taper In Spindle Nose: MT-6
Cross Slide Travel: 23.62″
X and Z axis Rapid Feed Rate: 196 ipm
X and Z axis Cutting Feed Rate: 118 ipm
Turret Tool Stations: 8-Station turret w/mix of ID & OD tools
OD Tool Size: 1.25″ X 1.25″
ID Tool Holder Bore: 1.97″

Fanuc Oi-TD Control
Tailstock
24” 3 Jaw Manual Chuck
48” 4-Jaw Chuck
8 Position Turret
