Ganesh Cyclone 70TTMY – 2013

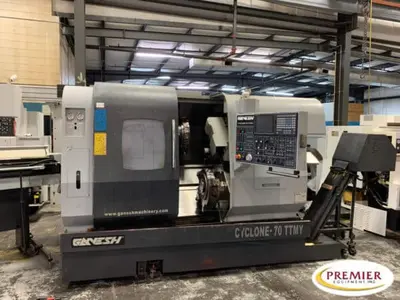

Ganesh Cyclone 70-TTMY Multi-Axis CNC Turning/Milling Center

Turning Diameter Max: 7.480

Turning Length (in.) Max: 15.750

Main Spindle Bar Capacity 2.75”

Main Spindle

Spindle Speed / Motor rpm: 4000 / HP: 20.00

Nose: A2-8

Bore: 3.300″

Sub-Spindle:

Speed / Motor rpm: 4000 / 10 HP

Nose: A2-5

Bore: 2.200

Main Tool Carrier: Top Turret

Max Tools 16 Station Turret (Static or Live)

Tool Shank Size (in.): Square: 1.000 Round: 1.000 Rotary: 1.250

Rotary Tool Spindle: rpm: 4,000 (6000 RPM?) Power: 7.00 hp

Second Tool Carrier: Bottom Turret

Max Tools 16 Station Turret (Static or Live)

Tool Shank Size (inch): Square: 1.000 Round: 1.000 Rotary: 1.250

RotaryTool Spindle: rpm: 4000 Power: 7.00 hp

Number of Axes: Standard: 8

Travel Rapid Rate

B1 Std. 25.590 in. 1,573 ipm

C1 Std. 360.000 deg

C2 Std. 360.000 deg

X1 Std. 5.940 in. 630 ipm

X2 Std. 9.050 in. 630 ipm

Y1 Std. 2.760 in. 236 ipm

Z1 Std. 17.320 in. 1,573 ipm

Z2 Std. 17.320 in. 1,573 ipm

Control : Mitsubishi M720

Full “Y” Axis on Upper Turret

Full “C” Axis on Main and Sub Spindle

Dual 16 Stations Turrets

Rugged BMT-65 Tool Holders

Part Catcher

Part conveyor

Chip Conveyor

spindle chiller

2 Integral Spindles RPM max. : 4000 both spindles
(2) Tonfou TF3B-10 10” 3-Jaw Hydraulic Chucks
