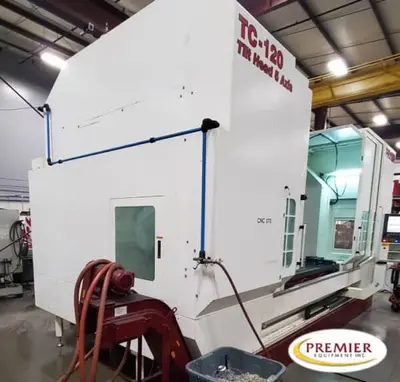

Fryer TC-120V 5-Axis VMC – 2016

Fryer TC120V 5-Axis CNC Vertical Machining Center

X Travel 120”

Y Travel 32”

Z Travel 28”

Table Load (Evenly Distributed) 10,000 lbs.

Table Size 120” x 24”

T-Slots (No./Width) 5 / .787”

Table Top to Floor 38”

SPINDLE

Motor HP (Peak) 30.0 HP

Spindle Speed (RPM) 18,000 RPM

Tool Type/Taper CAT40 Big Plus

Spindle Nose to Table (Max – Min) 28” – 4”

Spindle Center to Column 24”

ATC

Tool Storage Capacity 24 Station Arm Type

Tool Change Time 3.0 seconds

Tool Change Time Chip to Chip 4.0 seconds

Max. Tool Diameter (full) 3.20”

Max. Tool Dia. (adjacent empty) 6.25”

Max. Tool Weight 15.4 lbs.

Max. Tool Length 13”

Rapid Traverse 1,000 X,Y, Z

Cutting Feed Rate .001 – 600 IPM

GENERAL INFO

Operating Dimensions (WxDxH) 245”x138”x118”

Machine Weight 34,000 lbs.

Fryer Touch 2200 CNC Control

5-Axis Special Function Package

Chip Conveyor System TC Series

Full Machine Guard TC Series 1

Tilting Spindle Features HSK

Nikken 302 CNC Rotary Table

350 PSI Coolant Thru Spindle

Hydraulic Plumbing for Fixtures

Increase Rapid & Cutting Feedrate

15 GPM CTS Pump Upgrade

Auto Door Mechanism

Extended 32” Y-Travel

Increase Z Travel to 28”

Expanded Memory – 2GB

Ballscrew Thrmal Compensation

Machine was sold New in 2016
