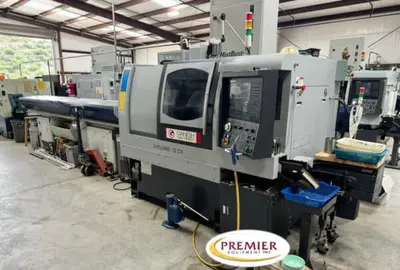

Ganesh Cyclone-32CS 7 Axis Dual Spindle Turn/Mill Center with Y-Axis on Main Spindle CNC Swiss Machine
Bar Capacity 1-3/8” (1.375”)
Main Spindle Motor 10 HP
Main Spindle Speed 6000 RPM
Tools 27 Tools with 11 Driven Tools Capacity
X Axis Travel (Main Spindle) 7.28″
Y Axis Travel (Main Spindle) 19.29″
Z Axis Travel (Main Spindle) 6.5″
X Axis Travel (Sub Spindle) 11.54″
Z Axis Travel (Sub Spindle) 11.61″
C Axis (Main Spindle) 360,000 Positions
C Axis (Sub Spindle) 360,000 Positions
Ganesh CNC Control (Mitsubishi??)
C-Axis
Y-Axis
Sub Spindle
Barfeed
Mist Buster
High Pressure Coolant
Fire Trace System
Parts Catcher
Exit Conveyor
Chip Conveyor
