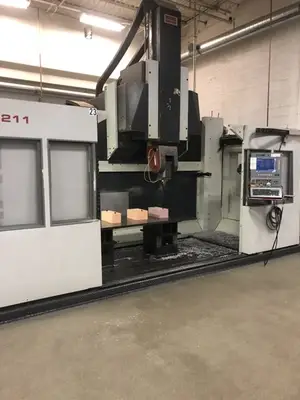

Fidia K-211 5-Axis VMC – 2005

Fidia K211 5 Axis CNC Vertical Machining Center
CNC Control: Fidia C20

Table Area: 138″ x 59″ {Floor Mounted)

X Axis: 118″

Y Axis 49.21″

Z Axis: 31.5″

A Axis: + 95/ -110 Deg.

C Axis: 360 Deg.

Spindle taper: HSK-63

Max. Spindle Speed: 24,000 rpm

Rapid Feed X Axis:1,968 ipm

Rapid Feed Y Axis: 1,575 ipm

Rapid Feed Z Axis: 1,181 ipm

Tool Changer: 42 Station

Approx. Overall Weight: 58,000 Lbs

Fidia Laser Tool Measuring

New Spindle Installed 2019 ($50K cost)

Chip Conveyor

Renishaw Probe

In Ground Coolant Tank
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
