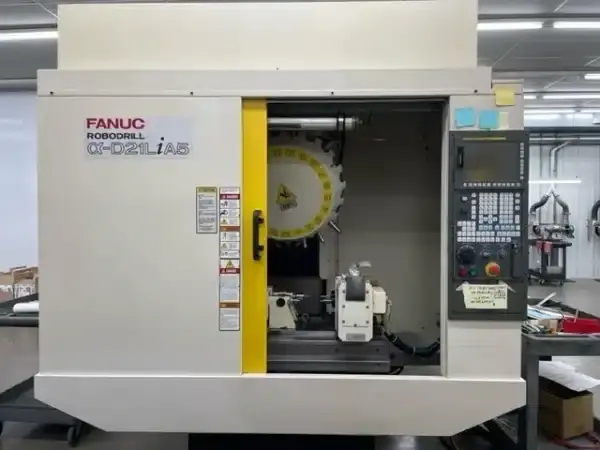

Fanuc Robodrill D21LiA5 – 2013

FANUC ROBODRILL Alpha D21LiA5 For Sale
The FANUC ROBODRILL Alpha D21LiA5 is a high-performance machining center featuring a travel capacity of 27.6 inches on the X-axis, 15.7 inches on the Y-axis, and 13 inches on the Z-axis. Powered by an 18.7 hp motor, it operates at a spindle speed of 24,000 RPM, with a 21-tool Automatic Tool Changer (ATC) and a BBT-30 Big Plus taper. The machine includes a table measuring 33.5 inches in width and 16.1 inches in length, and it is capable of 4-axis machining. It is equipped with a Fanuc 31-i Model B5 control, twin 4th Axis Rotary Tables, Koma 5C collets, and has recorded 3,112 operational hours as of May 26, 2023.

FANUC ROBODRILL ALPHA D21LIA5

X-Axis: 27.6″
Y-Axis: 15.7″
Z-Axis: 13″
POWER: 18.7 hp
RPM: 24,000 RPM
# ATC: 21
TAPER: BBT-30 Big Plus
TABLE-W: 33.5″
TABLE-L: 16.1″
# AXIS: 4

*Fanuc control: 31-i Model B5
Twin 4th Axis Rotary Tables
*Koma 5C collets.
*Hours as of May 26, 2023: 3,112.
