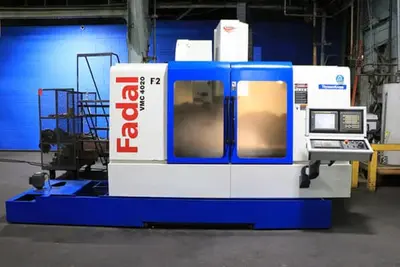

Fadal VMC-4020HT – 2004
Overview
FADAL VMC4020HT CNC Mill
VERTICAL MACHINING CENTER
Specs
TABLE WORKING SURFACE …………….. 20″ X 48″
FLOOR TO TABLE SURFACE ……………. 32″
T-SLOTS (# X WIDTH X SPAN) ………… 5 X .709″ X 3.75″
MAXIMUM WEIGHT ON TABLE …………… 3,641 LBS.
TABLE TRAVEL, X-AXIS (LONGITUDINAL) … 40″
TABLE TRAVEL, Y-AXIS (CROSS) ………. 20″
VERTICAL COLUMN TRAVEL (Z-AXIS) ……. 20″
MIN/MAX DISTANCE, SPINDLE NOSE TO TABLE 4″/24″
SPINDLE TAPER ……………………. CAT 40
NUMBER OF TOOLS ………………….. 30
SPINDLE SPEEDS, TWO GEARED RANGES ….. 10 TO 10,000 R.P.M.
SPINDLE CENTER TO COLUMN WAYS ……… 20″
SPINDLE TORQUE …………………… 220 FT./LBS.
CUTTING FEED RATES, (X,Y, & Z AXES) … 0.01 TO 400 I.P.M.
RAPID FEED RATE, (X & Y AXES) ……… 900 I.P.M.
RAPID FEED RATE (Z-AXIS) ………….. 600 I.P.M.
MAXIMUM TOOL DIAMETER …………….. 3″
…W/O ADJACENT TOOLS …………….. 6″
MAXIMUM TOOL LENGTH ………………. 15″
MAXIMUM TOOL WEIGHT ………………. 15 LBS.
APPROX DIMS ……………………… 117″ x 94″ x 100″
APPROX WEIGHT ……………………. 11,000 Lbs.
Equipped With
– FANUC MODEL: 18i-MB5 CNC CONTROL
HIGH SPEED CPU
– 10,000 R.P.M. HIGH TORQUE SPINDLE OPTION
– AUTOMATIC TOOL CHANGER (24) STATIONS
– RIGID TAPPING
– BOX WAYS ON ALL AXES
– AC SERVO MOTORS ON ALL AXES
– BIJUR AUTOMATIC LUBRICATION SYSTEM
– EXTERNAL COOLANT PUMP AND TANK
– 24 HORSE POWER AC DRIVE MOTOR
