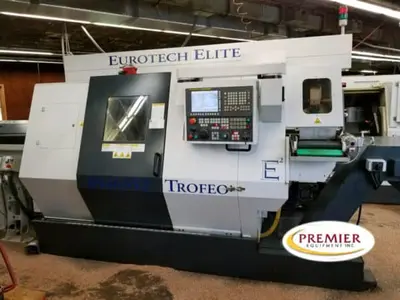

Eurotech Elite Trofeo B446-SY2 Multi-Tasking CNC Lathe
Bar capacity – 2”
Max. machining diameter – 9.6″
Max. swing over diameter – 20″
MAIN SPINDLE
Max. speed – 5000 RPM
Spindle Nose – ASA-5
Spindle Bore – 2.17″
Motor – 20HP
C-axis: least input value – .001 Deg
Sub Spindle
Max. speed – 5000 RPM
Spindle Nose – ASA-5
Spindle Bore – 2.17″
Motor – 15HP
Upper Turret
No. of Stations – 12
Lower Turret
No. of Stations – 12
Machine with chip conveyor – 173 x 85 w x 89 h
Machine weight with chip conveyor – Machine weight with chip conveyor
Fanuc 31i
2” Bar Capacity Option
Top Automazioni Fusion Bar feed (Italian)
Chip Conveyor
Auto Parts Catcher with Exit Conveyor
Collet Chucks on Main and Sub (B52 & B42 on Main / B42 on Sub Spindle)
(4) Live Holders (2 Horz / 2 Vertical)
