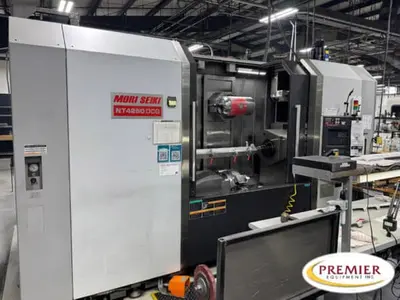

Mori Seiki NT4250DCG/1500SZ – 2006

Mori Seiki NT-4250DCG /1500SZ  CNC Multi-Axis Turning Center

Capacity
Max Swing of Workpiece28.7”
Swing Over Cross Slide28.7” / 15.7” Turret 2
Max. Distance Between Centers73.3”
Max. Turning Diameter25.9” / Turret 2: 13.7”
Max Turning Length60.7”
Car Work Capacity3.1”
Travel
X-Axis Travel 29.5”
Y-Axis Travel +/- 8.3”
Z-Axis Travel 61” + 3.9”
B-Axis Rotation Range +/-120 Degree
X-Axis Travel 7.7”
Z-Axis Travel 60”
Spindle 1
Max. Spindle Speed4,000 RPM
No. of Spindle Speed Ranges2
Type of Spindle NoseJIS A2-8
Through-Spindle Hole Diameter3.6”
Min. Spindle Indexing Increment0.0001 Degree
Spindle Torque <25%ED/10 Min/30 Min/cont>534 / 442.5 / 396.8 / 302.4 ft-lbf
Spindle 2
Max. Spindle Speed4,000 RPM
No. of Spindle Speed Ranges2
Type of Spindle NoseJIS A2-8
Through-Spindle Hole Diameter3.6”
Min. Spindle Indexing Increment0.0001 Degree
Spindle Torque <25%ED/10 Min/30 Min/cont>534 / 442.5 / 396.8 / 302.4 ft-lbf
Tool Spindle (Turret 1)
No. of Tool Stations1

Max. Rotary Tool Spindle Speed6000 RPM

MORIC MSX-711 III Control
Sub Turret with Milling
Sub Spindle
Cooljet HPC
Capto C6
40 ATC
Chip Conveyor
Tool Presetter
Renishaw Probe
Royal Mist Collector
All Available Static and Live Tool Holders for Lower Turret
(2) 10” 3-Jaw Hydraulic Chucks
All specifications and accessories are assumed to be correct but must be confirmed by the purchasing entity.
