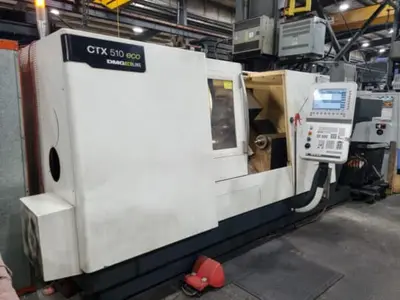

DMG Gildemeister CTX-510 eco – 2012

DMG Gildemeister CTX510 eco Multi-Axis CNC Turning Center

Working area
No. of Axes: 3
Max swing over bed: 26.77”
Swing over X-slide: 18.3”
Max. turning diameter: 18.3”
Max. turning length: 39.37”
Bar capacity: 2.9”
Transverse stroke (X): 11.81”
Longitudinal stroke (Z): 41.34”

Feed drive
Rapid traverse X/Z axes 1181 IPM

Headstock
Spindle nose (plain flange) 220 h5 mm
Spindle bore diameter 4.02”

Main drive
AC main drive power (100% ED) 30 HP
Torque at 600 rpm (100% ED) 365 lbf ft
Speed range 20 – 3250 rpm

Tool turret
Number of tool stations 12
Driven Tool Stations 6
Spindle Motor 12 HP
Speed 4000 RPM

Tailstock
Tailstock travel, automatic 33.46”
Tailstock quill stroke 5.9”
Quill diameter 4.72”
Quill shaft 5 MT

Weights
Net weight of the machine 16500 lb

Dimensions
Machine with chip conveyor   L x D x H 212” x 129” x 90”

Siemens 810D
Milling
All Available Tooling and Manuals
