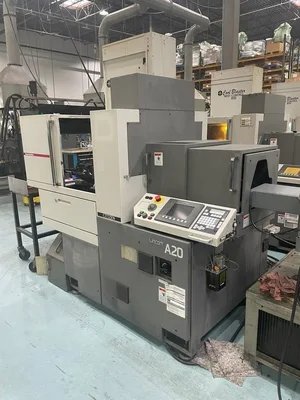

Citizen A20VII 2F7PL CNC Swiss Lathe
CAPACITY 0.75″
POWER 5 hp
RPM 8,000 RPM
# AXIS 5
SWISS, CHUCKER OR CONVERTIBLE? Swiss
LIVE BACK WORKING TOOLS? No
CONTROL CNC (FANUC 32I)
DIMENSIONS 8.5′ x 5.8′ x 6′
WEIGHT 5,600 lbs
To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
General Specifications:
Machine Diameter: 3/4″ (20 mm)
Machine Length: 6 1/2″ (165 mm)
Front Drilling Diameter: 1/4″ (10 mm)
Front Tapping Diameter: M8
Spindle Hole: 1 1/4″ (31 mm)
Main Spindle Speed: 8,000 RPM
Live Tool RPM: 6,000 RPM
Chuck Dia (Back Spindle): 3/4″ (20 mm)
Back Spindle Speed: 8,000 RPM
# of Tools Mounted: 21
Turning Tools on the Gang Post: 5
Rotary Tools for Cross Machining: 4
Tools for Front Drilling: 4
Tools for Back Drilling: 8
Machine Dimensions: 8.5′ x 5.8′ x 6′
Machine Weight: 5,600 lbs
Fanuc 32i CNC Control
Cool Blaster 850 Mist Collector
Cool Blaster CB510 High Pressure Coolant System
Edge Technologies C-320 Magazine Bar Feed (2011, s/n:C4201151217)
Lubrication System
(7) Tools
Ports
Hours:
Power On: 53,135
Run Time: 26,320
Cutting Time: 13,214
