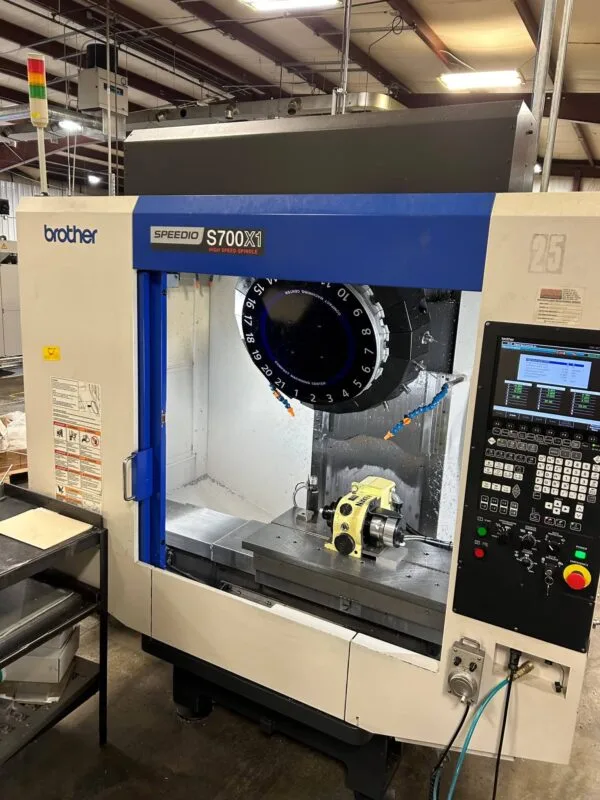

Brother Speedio S700X1 – 2018

Brother Speedio S700X1

Travels:

X: 27.6

Y: 15.7

Z: 11.8

Distance Tabletop to Spindle Nose: 7.1″-18.9″

Table Work Area Size: 31.4 x 15.7″

Max Load Capacity: 661 lbs

Spindle Speed: 27,000 rpm

Tapping Speed: 8000 rpm

Spindle Taper: BT30

Rapid Traverse X & Y Axis: 1969 ipm

Rapid Traverse Z Axis: 2204 ipm

Tool Pull Stud: MAS P30T-2

Tool Storage: 21

Tool Change Time tool to tool in seconds: .8

Tool Change Time chip to chip: 1.4 Motor (10 min/cont.): 11.8/8.4 hp For Axis Feed

X&Y: 1.34 hp For Axis Feed Z: 2.68 hp

Machine Weight: 5291 lbs

Floor Space Required: 80.7″ x 87.4 x 98.3h
Includes: Spindle Taper Air blast Manual Pulse Generator 12.1 Color LCP Heat Expansion Compensation System 27000 rpm Spindle Nikken CNCZ105 Full 4th Axis Rotary Table w Tailstock Part and Tool Probes
TOTAL OPERATION TIME: 1384 HOURS
