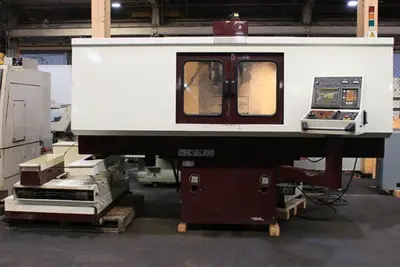

CHEVALIER FSG-B818CNC 8″ X 18″ CNC COLUMN TYPE SURFACE GRINDER
TABLE SIZE: 8″ X 18″
MAX DIST FR TABLE TO SPINDLE CENTERLINE: 19″
CROSS TRAVEL, MAX 11″
COLUMN FEED INFINITELY VARIABLE 0 TO 13′ FPM
T-SLOT SIZE X NUMBER: 15/32″ X 1
MAXIMUM TABLE LOAD: 440LBS
TABLE SPEED – INFINITELY VARIABLE: 0.032 to 49′ FPM
MAXIMUM LONGITUDINAL TRAVEL: 25 1/2″
WHEELHEAD FEED – INF VARIABLE: 0-20IPM
GRINDING SPEED: 500 to 3,500 RPM
POWER RATING: 10 HP
GRINDING WHEEL: 12″ x 1- 1/4″ x 3″
MACHINE WEIGHT: 8,700 LBS.
ACTUAL DIMS OF MACHINE: 118″ X 92″W X 93″H
FANUC OMC 3-AXIS CNC CONTROL
FANUC RED CAP AC SERVO MOTORS
-FOUR STANDARD GRINDING CYCLES: CRISS-CROSS, SURFACE,
PLUNGE AND PITCH MODES WITH AUTOMATIC WHEEL DRESSING AND
COMPENSATION. THIS MAKES THE MACHINE HIGHLY CAPABLE
TO DO PROFILE (CONTOUR) GRINDING, CREEPFEED GRINDING,
FORM GRINDING AND STEP GRINDING WITH AUTO WHEEL DRESS
WITH COMPENSATION.
10 H.P. SPINDLE MOTOR/3/50-60/230-460 VOLTS
YASKAWA “616PC5″ VARISPEED DRIVE FOR THE SPINDLE
MACHINE HAS A 12″ DIAMOND GRINDING WHEEL ON IT
PRECISION BALLSCREWS ON CROSSFEED, ELEVATING AND TABLE
AC SERVO MOTOR DRIVE ON ALL 3 AXES FOR CREEPFEED GRINDING
EXTREMELY RIGID SPINDLE THAT ARE SUPPORTED BY SIX ANGULAR
CONTACT BALL BEARINGS.
THE COLUMN TRAVERSES ON PRECISION ROLLER BEARINGS ON
HARDENED AND GROUND GUIDEWAYS.
T-SHAPE DESIGN MACHINE BASE GIVES IT THE RIGIDITY
FOR HEAVY DUTY OPERATIONS.
8″ x 18” ELECTRO-MAGNETIC CHUCK
CHUCK CONTROL BUILT-IN TO THE CONSOLE, VARIABLE HOLD INTENSITY
LARGE COOLANT SYSTEM WITH PAPER FILTRATION
FULL ENCLOSURE
MACHINE IS PRESENTLY WIRED FOR 3ph/50-60Hz/230 VOLTS
