Overview
Type:
Horizontal Table Type Boring Mills
Manufacturer:
STANKO
Model:
NP 160
Description

Machine is in Excellent Condition & Ready For Inspection.

Specifications
Spindle Size6.3"160.02 mm
X-Horiz Tvl of Table85"2,159 mm
Y-Vert Tvl of Head72"1,828.8 mm
Power30 kW40.2 hp
RPM1,150 RPM1,150 RPM
Table-W63"1,600.2 mm
Table-L70.8"1,798.3 mm
Spindle Tvl.39.3"998.22 mm
ControlCNC (GE Fanuc Series 15-M)CNC (GE Fanuc Series 15-M)
Dimensions302”L x 216”W x 237”H302”L x 216”W x 237”H
Weight40,000 KG40,000 KG

Specifications:

Model - NP160
Spindle Diameter - 6.3”
Rotary Table Size - 63” x 70.8”
Cross Travel (X Axis) - 85”
Vertical Travel (Y Axis) - 72”
Longitudinal Travel (W Axis) - 63”
Spindle Travel (Z Axis) - 39.3”
Spindle Taper - CAT50
Max Spindle Speed - 1150 RPM
Max Load On Table - 10,000 KG
Control - Fanuc
Main Motor - 30 KW
Electrics - 380V/3PH/60HZ
Made In - Russia
Approximate Weight - 40,000 KG
Approximate Overall Dimension - 302”L x 216”W x 237”H

Equipped With:

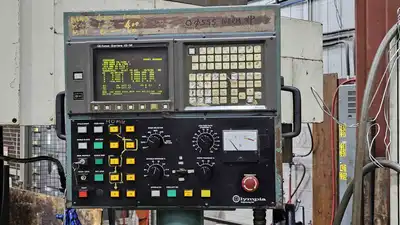

GE Fanuc Series 15-M CNC Control

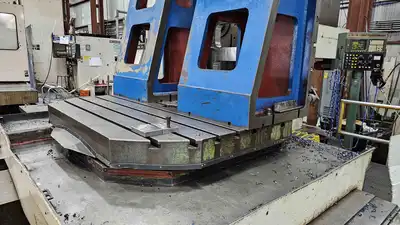

Built In 360 Degrees T-Slotted Rotary Table
Coolant System

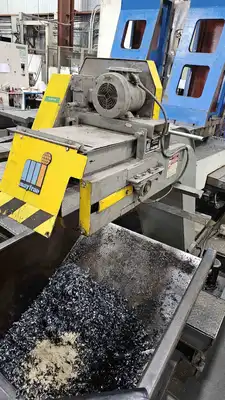

Chip Conveyor
Harden Ways
Work Light
