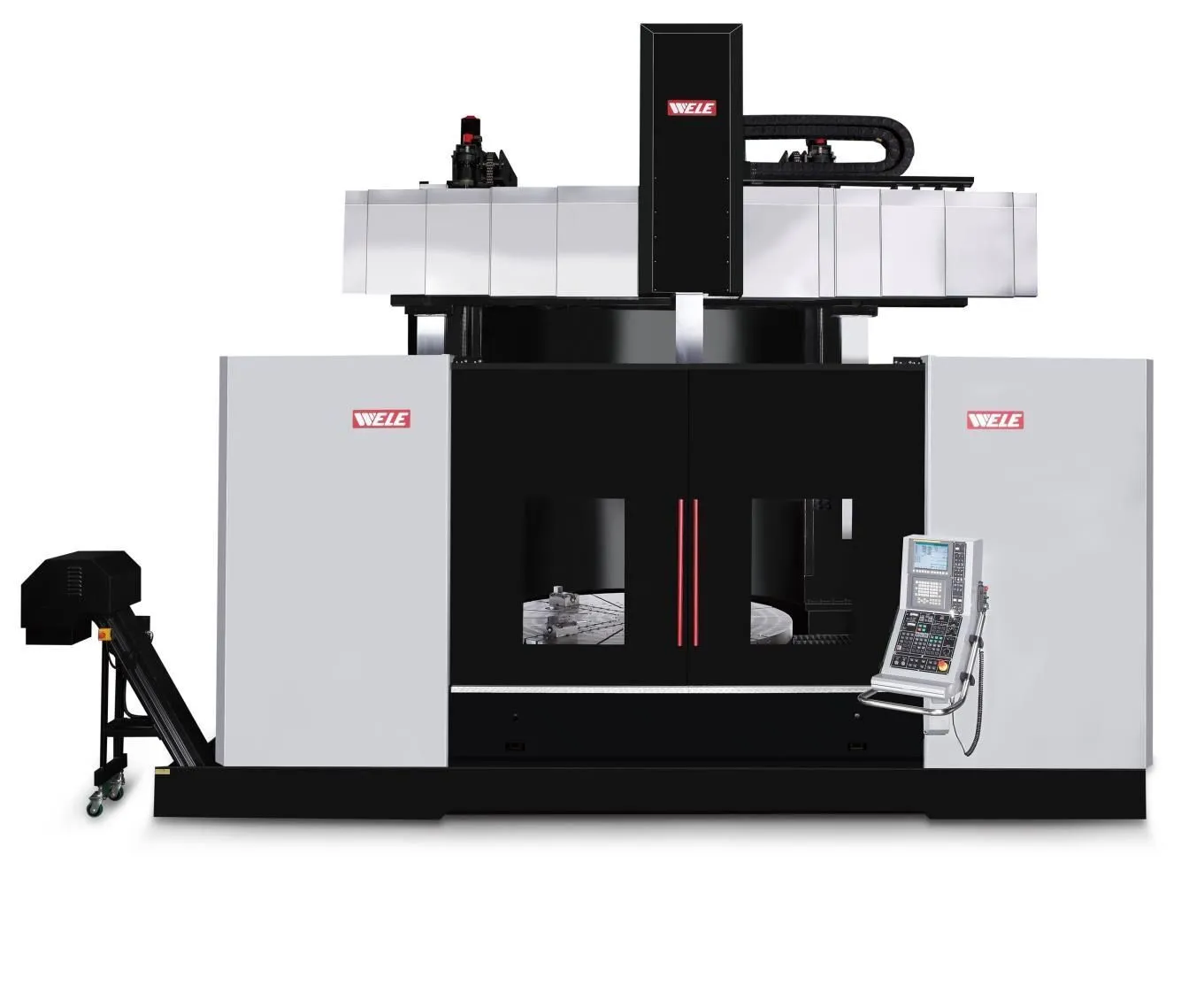

NEW WELE VTC2020

VTC2020
Table Diameter mm(in) 2,000 (78.7)
Max. Swing diameter mm(in) 2,400 (94.4)
Max. Turning diameter mm(in) 2,400 (94.4)
Max. Turning height mm(in) 2,000 (78.7)
Max. height from Table to Ram nose mm(in) 2,200 (86.6)
X axial travel (Head movement) mm(in) -1010~1,380 (-39.7~54.3)
Z axial travel (Head stock movement) mm(in) 1250 (49.2)
Cross rail travel mm(in) 1500 (59.1)
Table
Table speed rpm 2~200
Table driven motor (30min/cont.) kW(HP) 45/37 (60.3/49.6)
Max. Table torque Nm(lb-ft) 26,000 (19,176)
Number of table speed range 2
Clamping slots table load kg(lbs) 18,000 (39,600)
Spindle Ram:
Ram section mm (in.) 226 (8.9)
Ram spindle motor power (30min./cont.) kW(HP) 15/11 (20.1/14.8)
Spindle bearing diameter mm (in.) 115 (4.5)
Ram spindle speed rpm 1600
Max. Spindle torque Nm(lb-ft) 304 (224)
Feed rate:
Rapid feed rate of X m/min. (in./min) 10 (394)
Rapid feed rate of Z axis m/min. (in./min) 8 (315)
Cutting feed rate of each axis m/min. (in./min) 2 (78.7)
Ball screw diameter mm
X axis mm(in) 63mm (2.5")
Z axis mm(in) 50mm (2")
W axis mm(in) 63mm (2.5")
X axis servo kW 4
Z axis servo kW 7
W axis servo kW 7
Tool magazine:
ATC capacity 2 heads + 12 pockets
Tool change mode Pick up
Tool change time (Tool to Tool) sec. 12
Max. tool length mm (in.) 300 (11.8)
Max. tool weight kg (lbs) 15 (33)
Turning tool holder type WELE
Milling tool holder BBT50
Machine accuracy:
Positioning accuracy in X & Z axes mm(in.) +/-0.007/500(0.0002/19.6)
Repeatability in all axes mm(in.) 0.010(0.0002)
Indexing axial positioning accuracy arc sec 30”
Indexing axial repeatability arc sec 15”
Coolant equipment:
Coolant tank Liter (Gallon) 420 (132)
Coolant pump HP 1.5
Pneumatic requirement:
Air resource Mpa 0.6
Electrical Reqirement
Power requirement 220V, 60 Hz 80 kVA
Space requirement:
Machine length (Approx.) mm(in.)
Machine width (Approx.) mm(in.)
Machine height (Approx.) mm(in.) 5,940 (233.8)
Machine weight (Approx.) kg(lbs) 42,000 (92,400)
