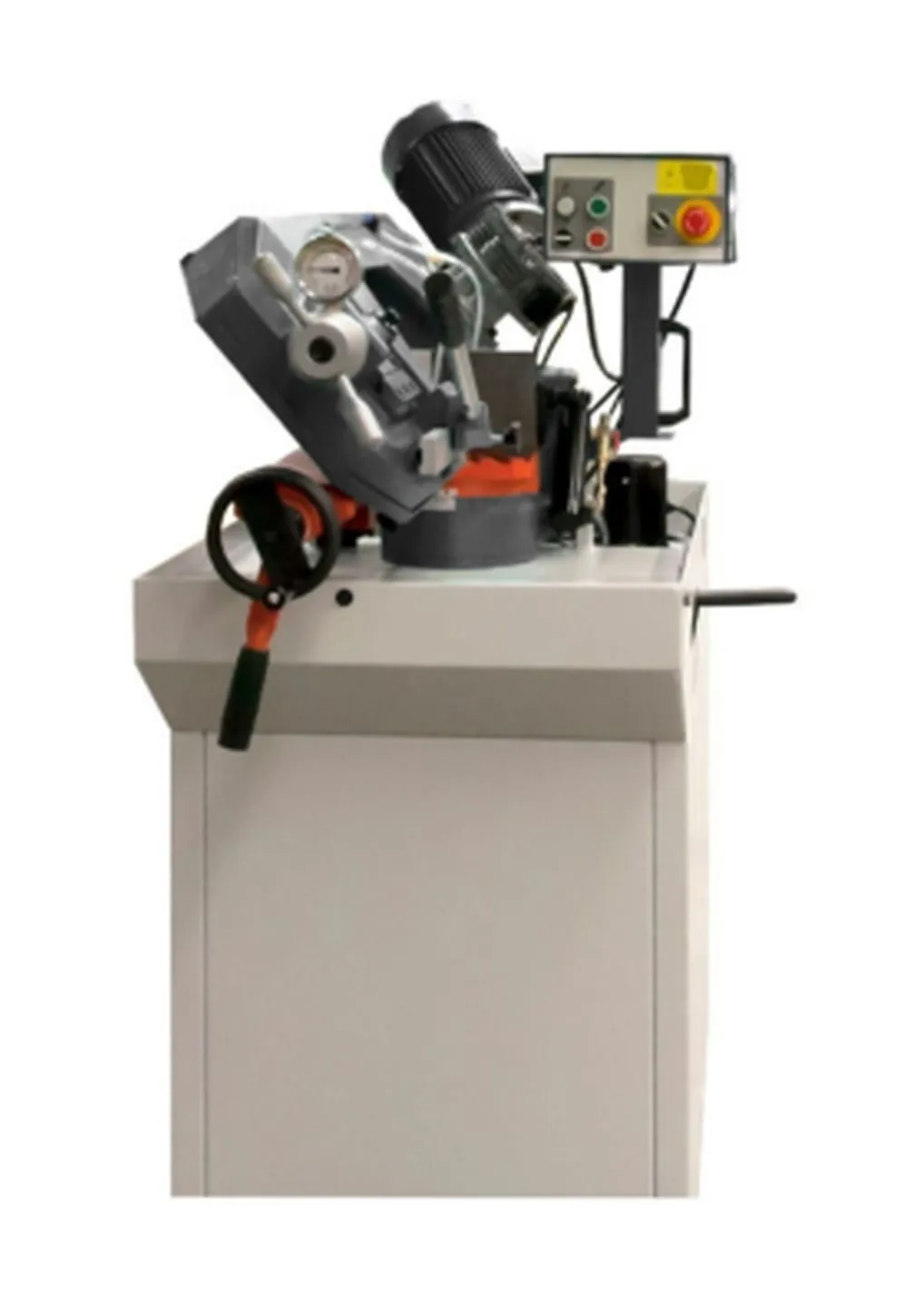

Introducing the new Clausing Kalamazoo MS9V3 Horizontal Miter Bandsaw. With a 9.45"x6" rect-cut, 8.9" round-cap, and variable speed drive, this manual 1.5 hp saw features a swivel miter frame and coolant system. Perfect for precision cutting needs!
| Rect-Cap (H) | 6" | 152.4 mm |
| Rect-Cap (W) | 9.45" | 240.03 mm |
| Rounds-Cap | 8.9" | 226.06 mm |
| Power | 1.5 hp | 1.1 kW |
| Type (Auto, Manual, Semi) | Manual | Manual |
| Blade Width | 1" | 25.4 mm |
| Blade Thickness | 0.035" | 0.889 mm |
| Blade Length | 96.5" | 2,451.1 mm |
Specifications:
Machine Style..........Manual
Drive Type..........Variable Speed Drive
Maximum Capacity Round (inch)..........8.9
Maximum Capacity Rectangle (inch)..........9.45 x 6
Voltage..........230
Phase..........3
Coolant System..........Yes
Angular Cuts at 45 Degrees (inch)..........5.75 x 8.27
Blade Size..........1” x .035” x 96.5”
Blade Speeds (SFPM)..........132 – 264
Blade Guide Type..........Carbide
Motor Horsepower..........1.5
Machine Features:
• 1.5hp drive motor, heavy-duty reducer, & Variable Speed drive assembly 3 phase machines
• Swivel miter saw frame for adjustable left 0-60deg angles
• Motor with worm gear driven gear box, worm shaft is hardened and ground
• Blade tension gauge system
• Coolant System
• Machine stand with door
• Feed down cylinder
• 2 Year limited warranty
