VF-1 HAAS CNC VERTICAL MACHINING CENTER - 2020 - 20-position automatic tool changer - 20” X - 16” Y - 20” Z - #40 taper - 8100 rpm - 30 hp motor
| X | 20" | 508 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 8,100 RPM | 8,100 RPM |
| # ATC | 20 | 20 |
| Taper | CT or BT 40 | CT or BT 40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 26" | 660.4 mm |
| # Axis | 3 | 3 |
| Control | CNC (Haas CNC Control) | CNC (Haas CNC Control) |
| Weight | 8000 LBS | 8000 LBS |

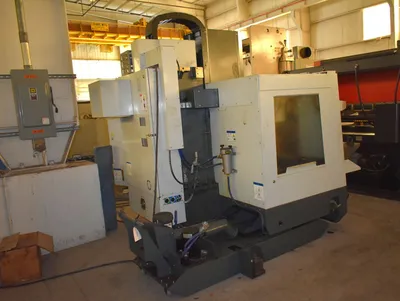

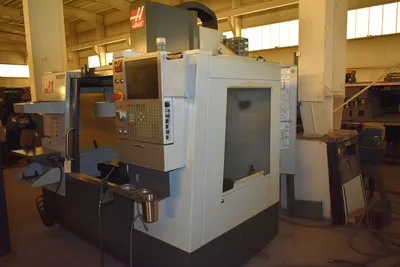

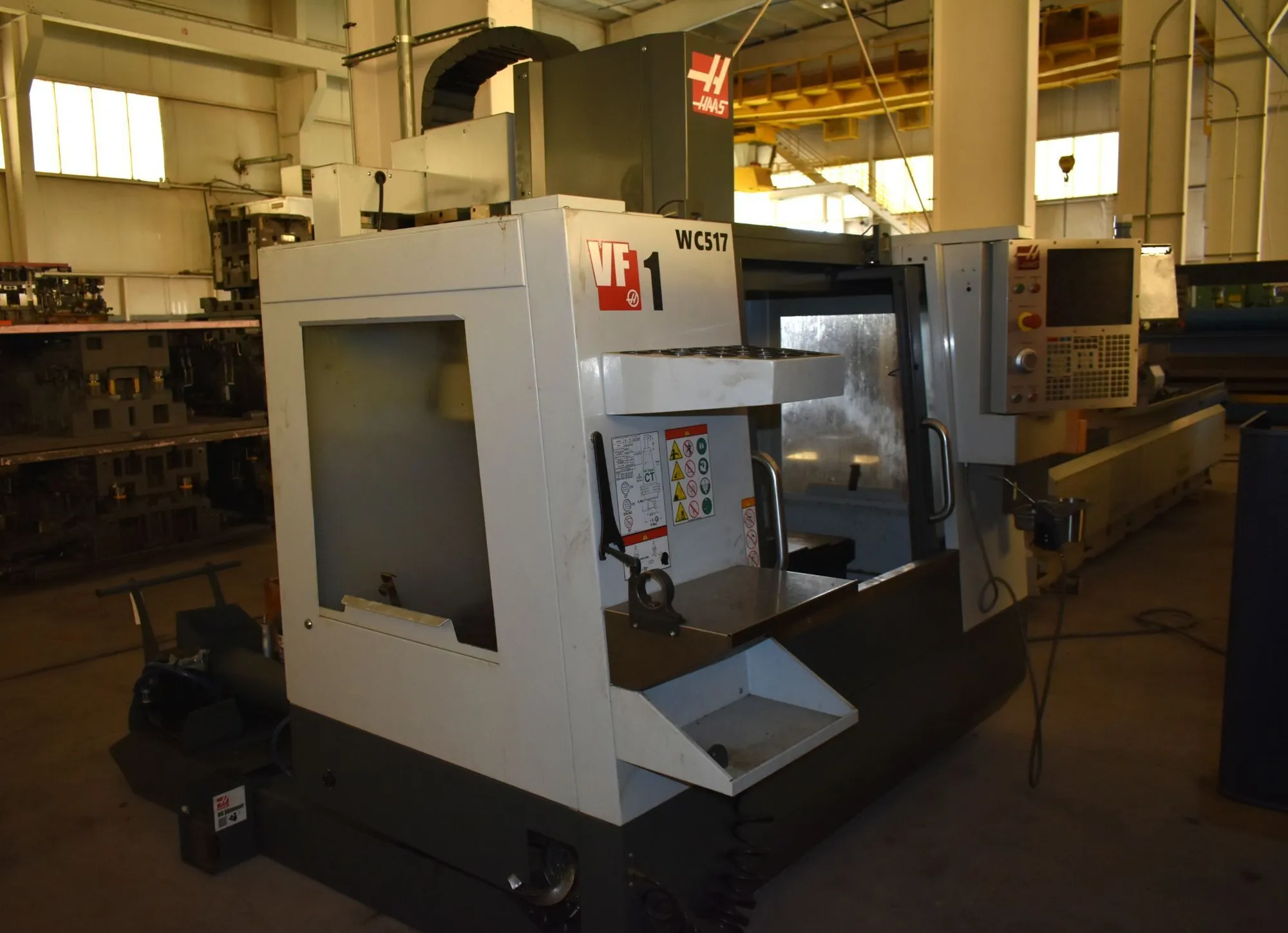

VF-1 HAAS HIGH POWER CNC VERTICAL MACHINING CENTER
New 2020, Serial No 1172570, Model VF-1
EQUIPPED WITH:

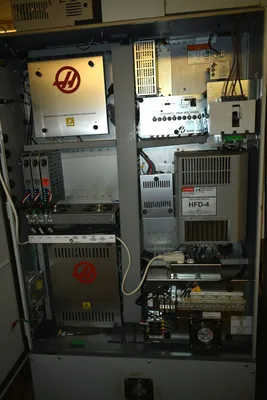

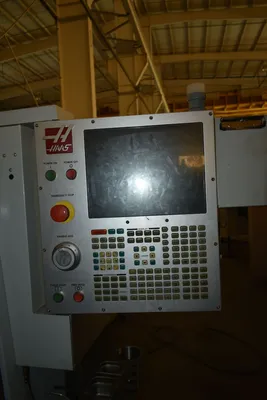

Haas CNC Control
20-Position Automatic Tool Changer (Carousel Type)
30 HP Direct-Drive Spindle
Rigid Tapping

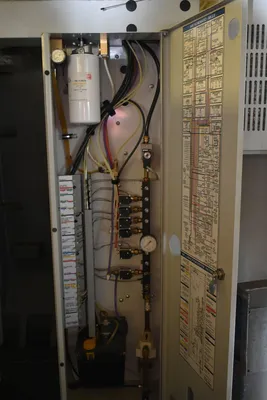

Automatic Air Gun
Coolant System - Chip Auger
CATALOG SPECIFICATIONS:

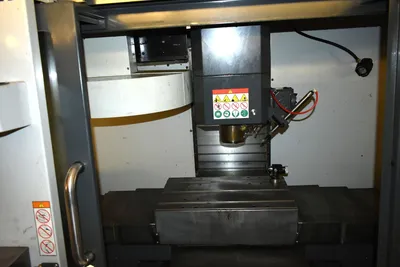

Table Dimensions (Overall), W x L 14" x 26"
Table Load Capacity 3000 LBS
Table Longitudinal Travel (X-Axis) 20"
Saddle Cross Travel (Y-Axis) 16"
Quill Vertical Travel (Z-Axis) 20"
Spindle Nose to Table, Maximum 24"
Spindle Nose to Table, Minimum 4"
Tool Diameter Full, Maximum 3.5"
Tool Weight, Maximum 12 LBS
Spindle Taper #40
Spindle Speeds, Range 0 to 8100 RPM
Cutting Feedrate, Maximum 650 IPM
Rapid Traverse 1000 IPM
Spindle Motor, Horsepower Rating 30 HP
Electrical System 440/3/60
Weight, Approximately 8000 LBS
F.O.B. OUR WAREHOUSE
