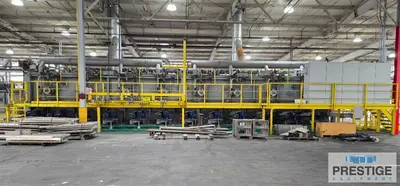

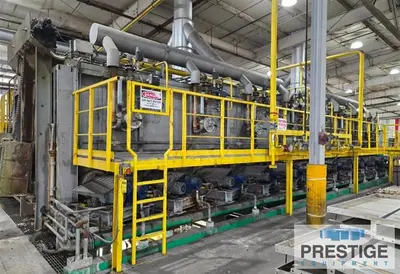

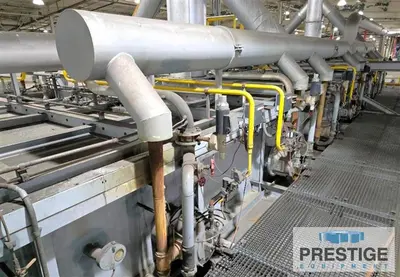

USED 2016 SXP WALKING BEAM ANNEALING FURNACE
Overview
Specifications
SPECIFICATION:
Pipe Capacity Range, Stainless: 3.8" - 16"
Pipe Length Capacity: 108" - 564"
Maximum Furnace Temp., Fahrenheit: 2100°

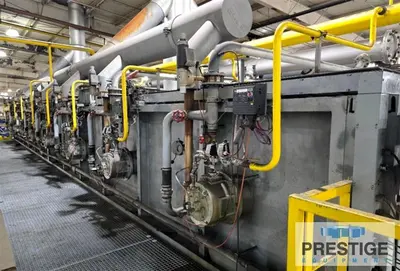

Recuperation Burners, Qty.: 8 Left /7 Right
Air Compression System, 2 Zone: 100 MBar
Max Throughput: 48 Pipes/ 12 Hour
Distance Between Inside Walking Beams . 9.84":

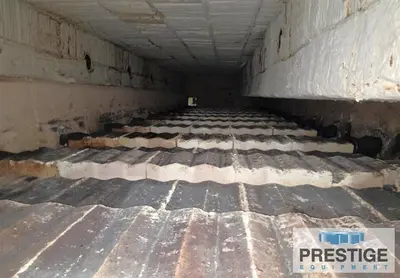

Interior Moveable Beams: 10
Walking Beam Lift Distance: 3.14" - 3.93"
Walking Beam Transportation: 5.90" Horizontally
Roller Belt Speed: 3937 IPM
Equipped With:

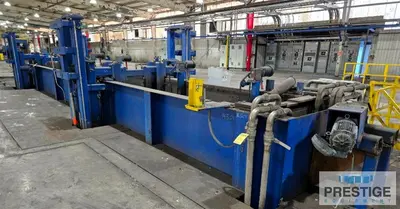

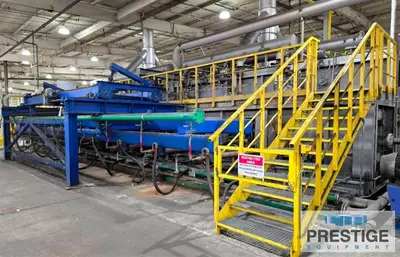

Hydraulic Walking Beam Movement (Installed Under Platform)
Horizontally & Vertically Adjusted Walking Beams

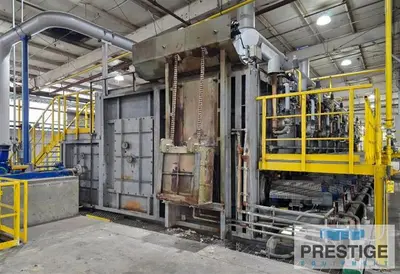

Electromechanically Controlled Entry & Exit Doors

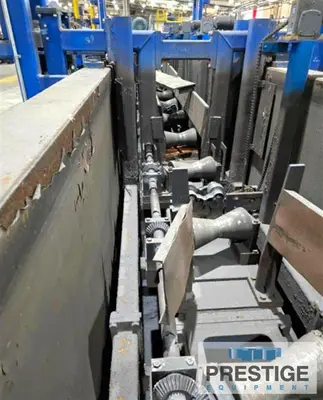

Infeed Roller Belts
Outfeed Conveyance with Quench Tank
Ticklers
Rolls
Spare Support Parts
NOTE:
See Process Description For Additional Information
Features:
Hydraulic Walking Beam Movement
Horizontally & Vertically Adjusted Walking Beams
Electromechanically Controlled Entry & Exit Doors
Infeed Roller Belts
Outfeed Conveyance
