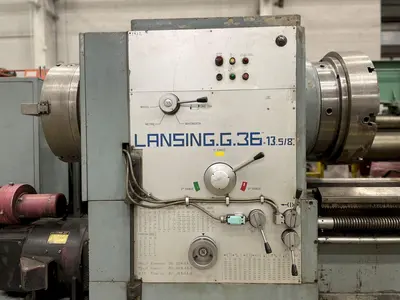

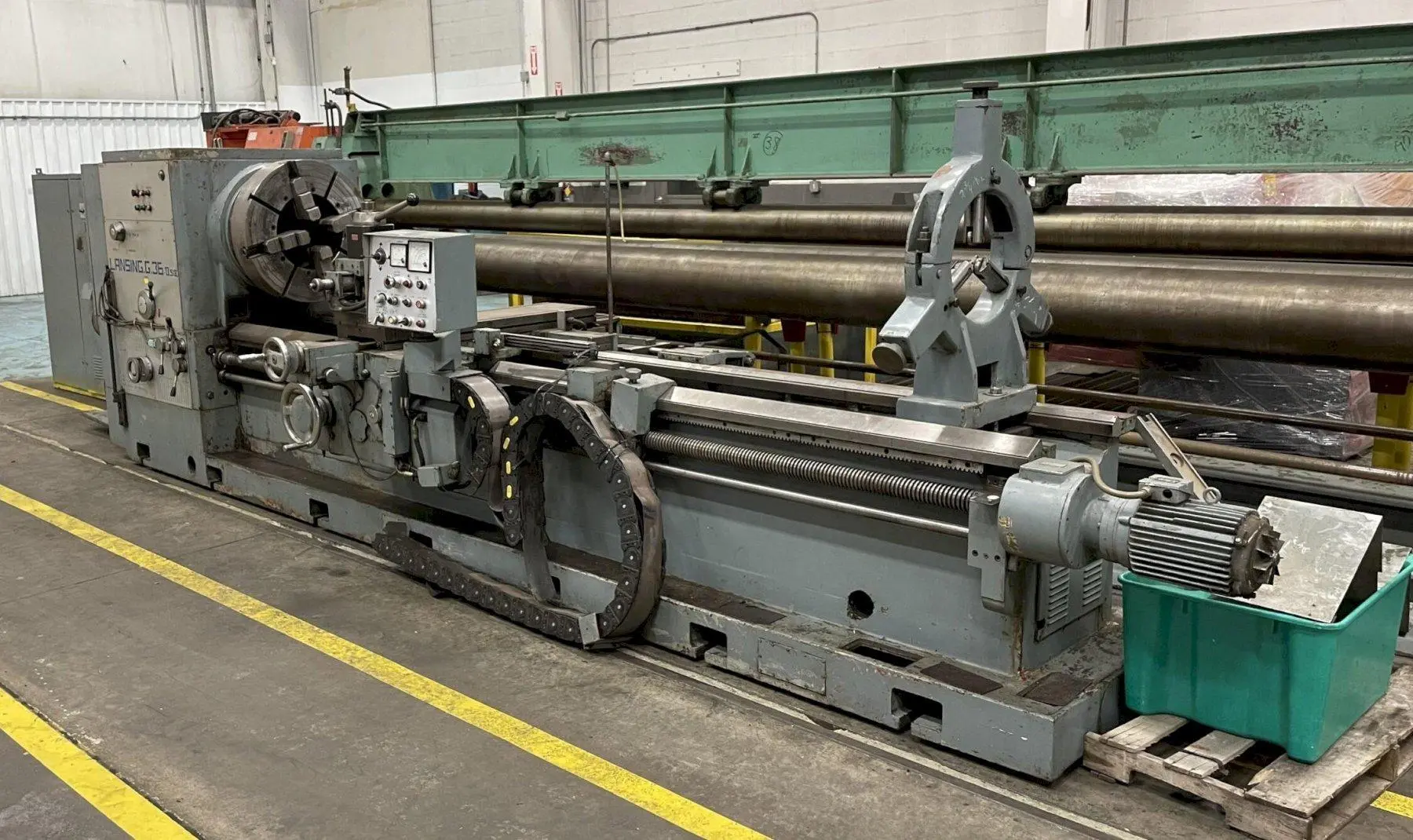

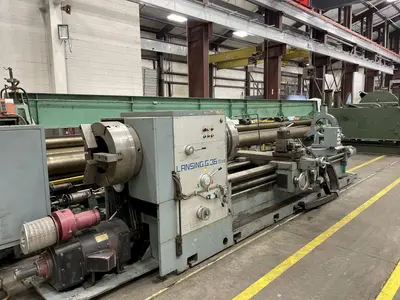

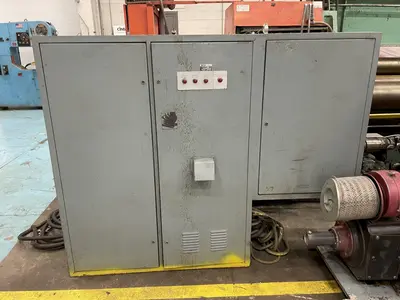

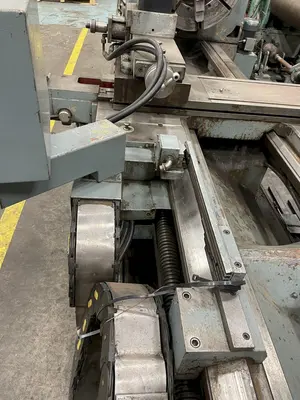

USED LANSING G36-13.5/8

MODEL ......................... G36-13.5/8
SWING OVER WAYS ............... 36"
SWING IN GAP .................. 44"
SWING OVER CROSS SLIDE ........ 26"
DISTANCE BETWEEN CENTERS ...... 160"
SPINDLE SPEEDS (VARIABLE) ..... 5 TO 250 RPM
FEEDS ......................... (40) .0058 TO .0864 IPR
CROSS FEEDS ................... (40) .0058 TO .0864 IPR
THREADS ....................... (40) 4 TO 60 TPI
METRIC THREADS ................ (40) .5 TO 7.5 MM
DIAMETER OF SPINDLE HOLE ...... 13-1/2"

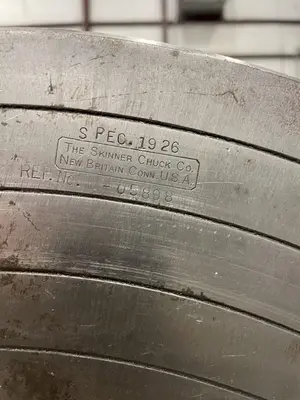

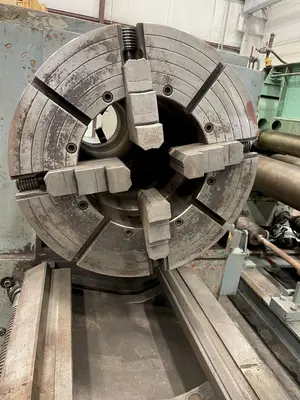

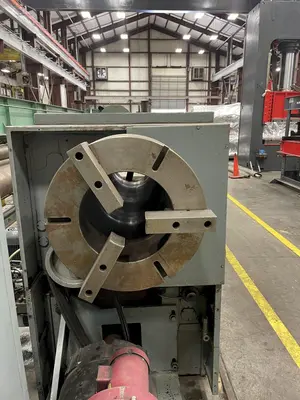

CHUCKS FRONT & REAR ........... 28" 4 JAW

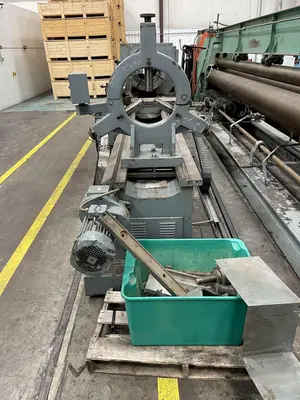

STEADY REST ................... YES
THREAD DIAL ................... YES
TAPER ATTACHMENT .............. YES
RAPID TRAVERSE ................ YES
MOTOR ......................... 30 HP

Brand
LANSING
Type
Lathes, Oil Field & Hollow Spindle
Stock No.
24055
