Used Tampa Tank Inc. 16,696 Gallon Stainless Steel API 650 Tank – Purchaser Tank #T-501

Used Tampa Tank Inc. 16,696 Gallon Stainless Steel API 650 Tank Purchaser Tank #T-501, Annex S and J, 12th Edition with Addendum 1. 14 diameter x 176" high. Design liquid level of 146" It is designed for a specific gravity of 1.05, an atmospheric design pressure, and a temperature range from a minimum metal temperature of 50F to a maximum design temperature of 100F. The tank was built using 304L stainless steel in two 1/4" thick shell courses and carries the manufacturer's No stress relief was applied. The purchasers tank number is listed as T-501. Built 2015. serial number 6166-B.*** OVERALL DIMS NEED TO BE CONFIRMED ***

Used Equipment Facts About This Machine
Manufacturer Information

Manufacturer: Tampa Tank Inc.

Purchaser’s Tank Number: T-501

Serial Number: 6166-B

Capacity: 16,696 Gallons

Category: Vertical Stainless Steel Storage Tank

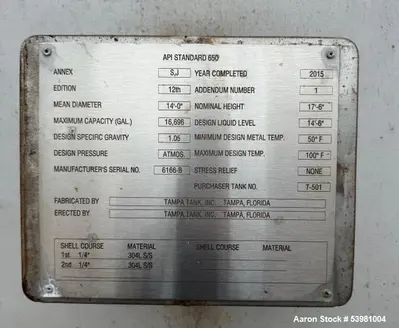

Design Standard: API 650, Annex S & J, 12th Edition + Addendum 1

Year Built: 2015

Description
This used Tampa Tank Inc. stainless steel vertical tank provides a 16,696-gallon capacity and was fabricated to API Standard 650, Annex S and J (12th Edition with Addendum 1), ensuring compliance with recognized industry requirements for liquid storage.
The tank measures 14 ft diameter x 17 ft 6 in height with a design liquid level of 14 ft 6 in. Designed for a specific gravity of 1.05, the tank operates at atmospheric pressure with a temperature range of 50°F minimum metal temperature to 100°F maximum design temperature.
Constructed of 304L stainless steel in two 1/4” thick shell courses, this unit offers durability and resistance to corrosion for both food-grade and industrial applications. Built in 2015, it is identified as serial number 6166-B.
Specifications

Capacity: 16,696 gallons

Dimensions: 14’ diameter x 17’6” high

Design Liquid Level: 14’6”

Material: 304L Stainless Steel

Shell Construction: Two 1/4” thick shell courses

Design Standard: API Standard 650, Annex S & J, 12th Edition + Addendum 1

Specific Gravity: 1.05

Design Pressure: Atmospheric

Temperature Range: 50°F (min metal temp) – 100°F (max design temp)

Year Built: 2015

Serial #: 6166-B

Purchaser’s Tank Number: T-501

Stress Relief: None applied

Applications
What might this be used for?

Bulk food & beverage storage (juices, syrups, oils, dairy)

Brewery and distillery liquid storage

Chemical storage for non-pressurized liquids

Pharmaceutical and nutraceutical process storage

Agricultural liquid fertilizers and nutrients

Industrial process water storage

Cosmetic ingredient storage

Wastewater or effluent storage

Non-corrosive solvent storage

General bulk liquid containment in manufacturing

Example Products Stored in this Tank

Vegetable oils (soy, canola, sunflower, palm)

Milk, whey, and dairy liquids

Juice concentrates and liquid sweeteners

Fermentation batches (beer, cider, wine)

Cleaning solutions and detergents

Chemical process intermediates

Nutritional supplements in liquid form

Cosmetic oils and personal care ingredients

Agricultural fertilizers and liquid feedstock

Non-pressurized process water or effluent
