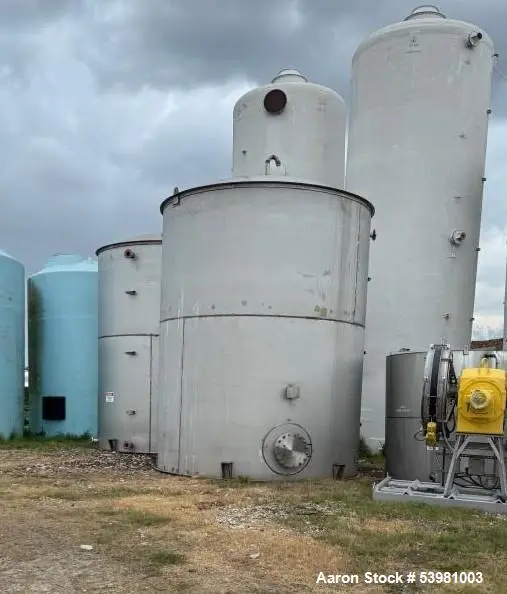

Used Tampa Tank Inc. 16,696 Gallon Stainless Steel API 650 Tank – Model T-501

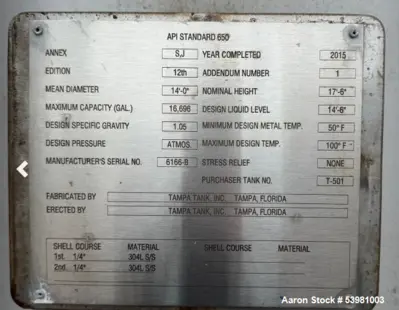

Used Tampa Tank Inc. 16,696 Gallon 304 Stainless steel. API Standard 650, Annex S and J, 12th Edition with Addendum 1. 14 diameter x 176" high. Design liquid level of 146" It is designed for a specific gravity of 1.05, an atmospheric design pressure, and a temperature range from a minimum metal temperature of 50F to a maximum design temperature of 100F. The tank was built using 304L stainless steel in two 1/4" thick shell courses and carries the manufacturer's No stress relief was applied. The purchasers tank number is listed as T-501. Built 2015. serial number 6166-A.*** OVERALL DIMS NEED TO BE CONFIRMED ***

Used Equipment Facts About This Machine
Manufacturer Information

Manufacturer: Tampa Tank Inc.

Model/Tag: Purchaser’s Tank Number T-501

Serial Number: 6166-A

Standard: API Standard 650, Annex S & J, 12th Edition with Addendum 1

Category: Stainless Steel Vertical Storage Tank

Year Built: 2015

Description
This used Tampa Tank Inc. 16,696-gallon stainless steel vertical storage tank is built to API Standard 650, Annex S and J, 12th Edition with Addendum 1. Constructed from 304L stainless steel, the tank offers durability, corrosion resistance, and compliance with stringent industry standards.
The tank measures 14 ft diameter x 17 ft 6 in high with a design liquid level of 14 ft 6 in. It was designed for a specific gravity of 1.05, atmospheric design pressure, and a temperature range of 50°F minimum metal temperature to 100°F maximum design temperature.
Fabricated with two 1/4” thick shell courses, this tank did not receive stress relief during manufacturing. With a total capacity of 16,696 gallons, it is ideal for food, chemical, and industrial liquid storage applications.
Specifications

Capacity: 16,696 gallons

Dimensions: 14’ diameter x 17’6” high

Design Liquid Level: 14’6”

Construction Material: 304L Stainless Steel

Shell Thickness: (2) x 1/4" courses

Design Standards: API 650, Annex S & J, 12th Edition + Addendum 1

Specific Gravity Rating: 1.05

Design Pressure: Atmospheric

Temperature Range: 50°F min metal temp – 100°F max design temp

Year Built: 2015

Serial Number: 6166-A

Purchaser’s Tank No.: T-501

Stress Relief: None applied

Applications
What might this be used for?

Bulk liquid storage in food & beverage industries

Dairy and edible oil storage

Chemical and solvent storage (non-pressurized)

Pharmaceutical and nutraceutical liquid storage

Brewing and distilling operations

Industrial process water storage

Wastewater or effluent holding tank

Agricultural fertilizer or nutrient storage

Cosmetic ingredient bulk storage

General industrial non-pressurized liquid containment

Example Products Stored in this Tank

Milk, cream, and dairy liquids

Vegetable oils (soy, canola, sunflower)

Juice concentrates and beverages

Cleaning solutions and surfactants

Chemical intermediates and process fluids

Fermentation liquids for breweries/distilleries

Nutritional supplements and syrups

Cosmetics and personal care ingredients

Non-corrosive industrial liquids

Agricultural feedstock liquids and fertilizers
