USED 2012 KITAGAWA TP530
Overview

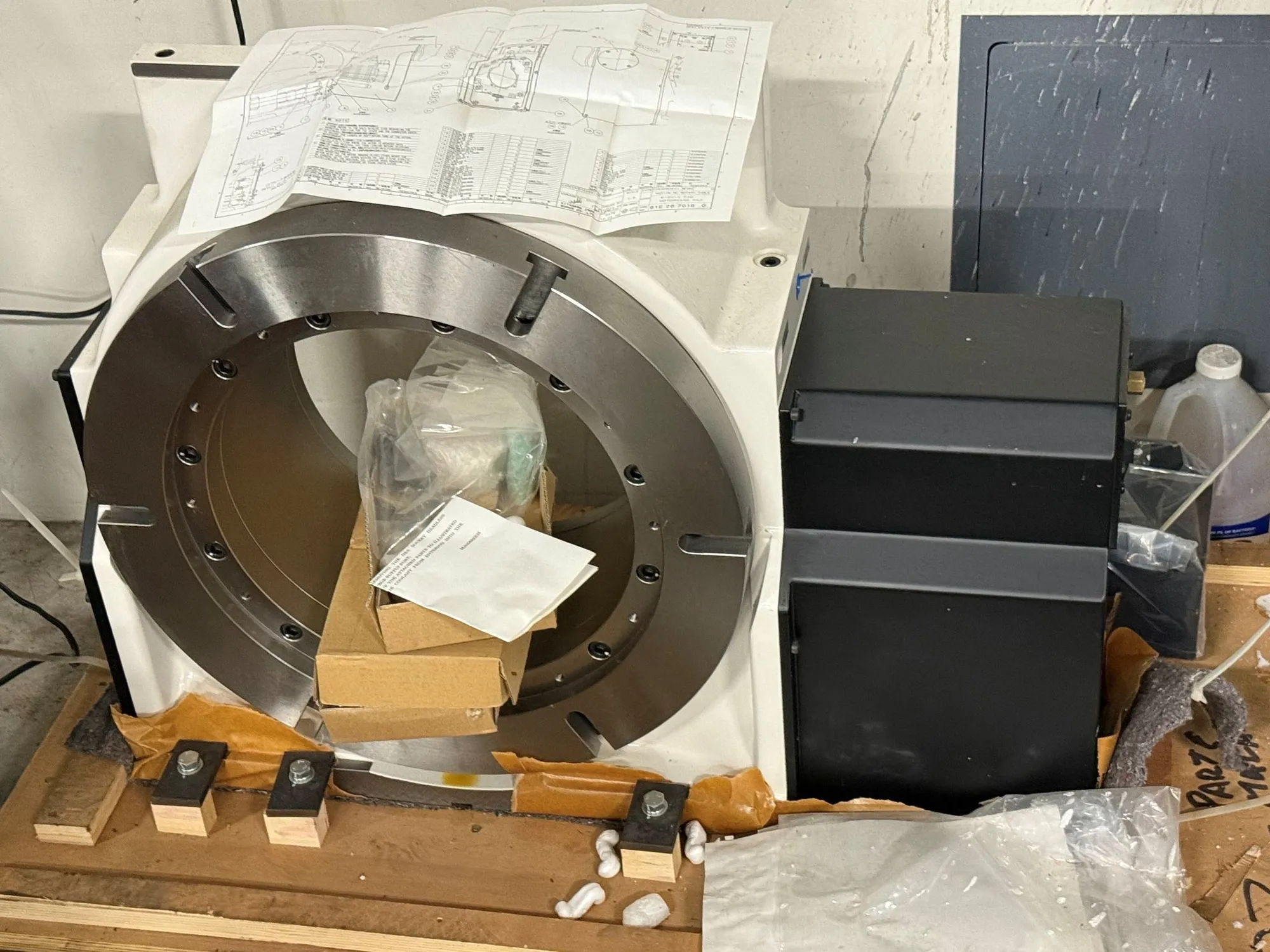

AS NEW NEVER USED 2012 KITAGAWA LARGE HOLE ROTARY TABLE MODEL TP530
Specs
TABLE DIAMETER (MM) Φ530
CENTER HOLE DIAMETER (MM) Φ400H7
THROUGH HOLE DIAMETER (MM) Φ345
CENTER HEIGHT (MM) 310
CLAMPING METHOD HYDRAULIC-
CLAMPING TORQUE (AT HYDRAULIC 3.5MPA) (N.M) 6100
MOTOR AXIS REDUCED INERTIA (KG.M2) 0.0025
SERVOMOTOR (FOR FANUC SPECIFICATION) ΑIF12/4000-B
TOTAL REDUCTION RATIO-
ADDITIONAL AXIS SPECIFICATION 1/180
M SIGNAL 1/180
MAX. TABLE ROTATION SPEED-
FANUC SPECIFICATIONS (MIN-1/AT MOTOR 2000 MIN-1) 11.1
M SIGNAL SPECIFICATIONS 8.33 (AT MOTOR 1500MIN-1)
ALLOWABLE WORK INERTIA (KG.M2) 12.29
INDEXING ACCURACY (SEC) 20
REPEATABILITY (SEC) 4
MASS OF PRODUCT WEIGHT (KG): 350
MANUAL TAILSTOCK (AS AN OPTION, SEE PAGE 115) - TS500RN
Equipped With
Still Bolted to Original Pallet
12" thrue hole
table only
can purchase motor to mate to any machine
