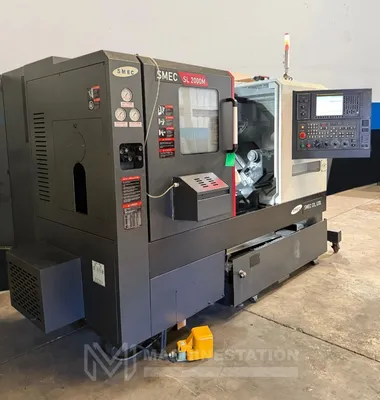

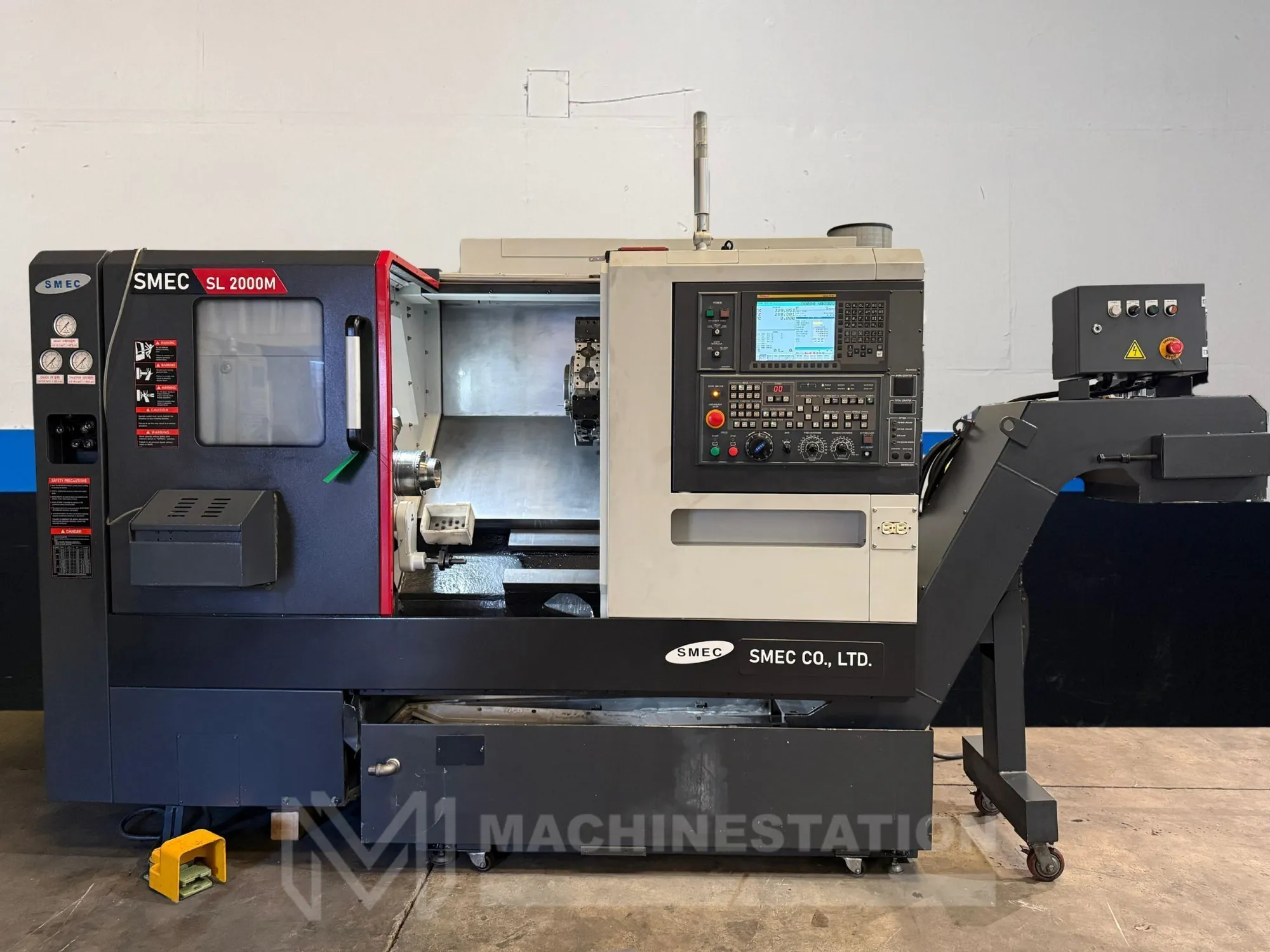

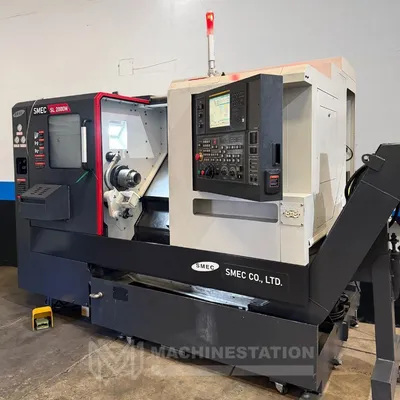

USED 2020 SMEC SL 2000M

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

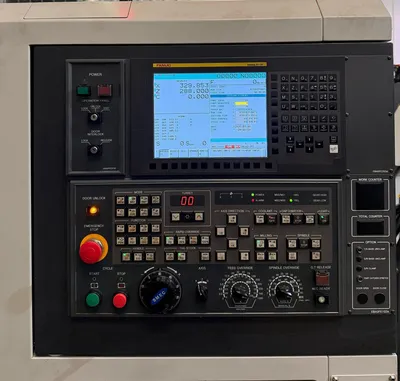

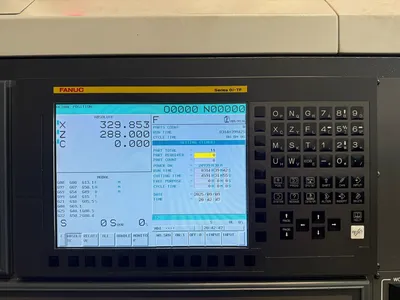

Fanuc Oi-TF series CNC Control
4,591 Hours Cutting Time
Box Way Construction
PCMCIA Card Interface & USB Port
Coolant Tank

Capacity:
Max Turning Diameter: 14.65″
Max Turning Length: 20.48″
Swing Over Bed: 22.45″
Swing Over Cross Slide: 18.12″
Max Bar Capacity: 2.05″

Travel:
X Axis Travel: 8.47″
Z Axis Travel: 22.14″
C Axis: 0.001 Degrees
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1181 IPM

Spindle:
Spindle Nose: A2-5
Spindle Bore: 2.40″
Spindle Speed: 6,000 RPM
Spindle Motor: 20 HP

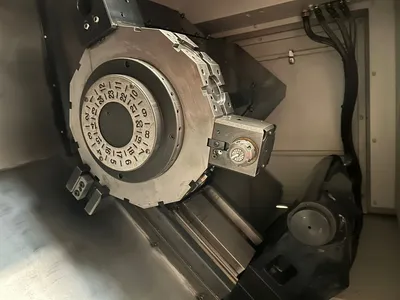

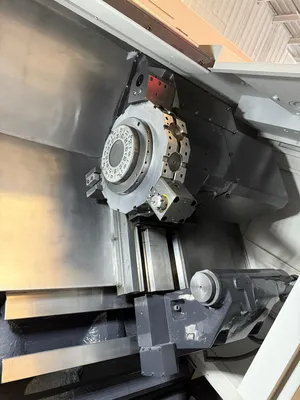

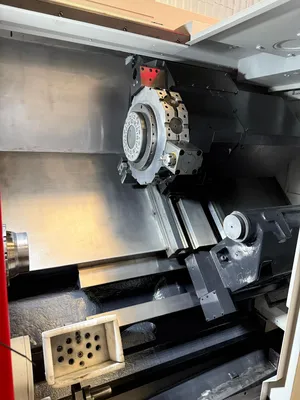

Turret:
Turret Capacity: 12 Stations (24 positions)
Turret Index Time: 0.2 Second
OD Tool Size: 1.0″
Boring Bar Diameter: 1.58″
Rotary Tool Speed: 5000 RPM
Rotary Tool Motor Power: 7.5 HP
Tool Holders Type: BMT-55

Tailstock:
Tailstock Taper: MT-4
Tailstock Body Travel: 17.72″

General:

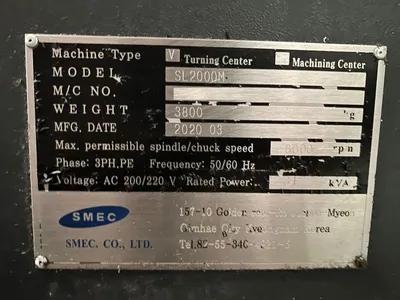

Power: 200v – 220v / 3-Phase / 31 kva / 50/60 Hz
Overall Dimensions: 108″ x 61″ x 76″ High Approx.
Weight: 8,378 lbs Approx.

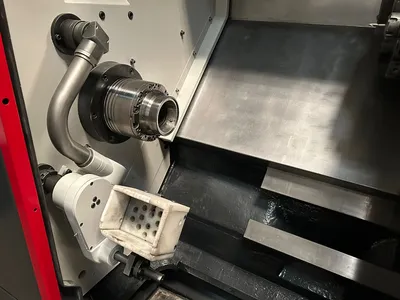

Collet Chuck (Capable 6″ Chuck)
A2-5, 6,000 RPM Spindle
Servo Controlled C Axis on Spindle
12 Station Live Tool Turret – 24 Positions
Bar Feeder Interface
Part Catcher
Tool Presetter
Tailstock
Chip Conveyor
Foot Switch
