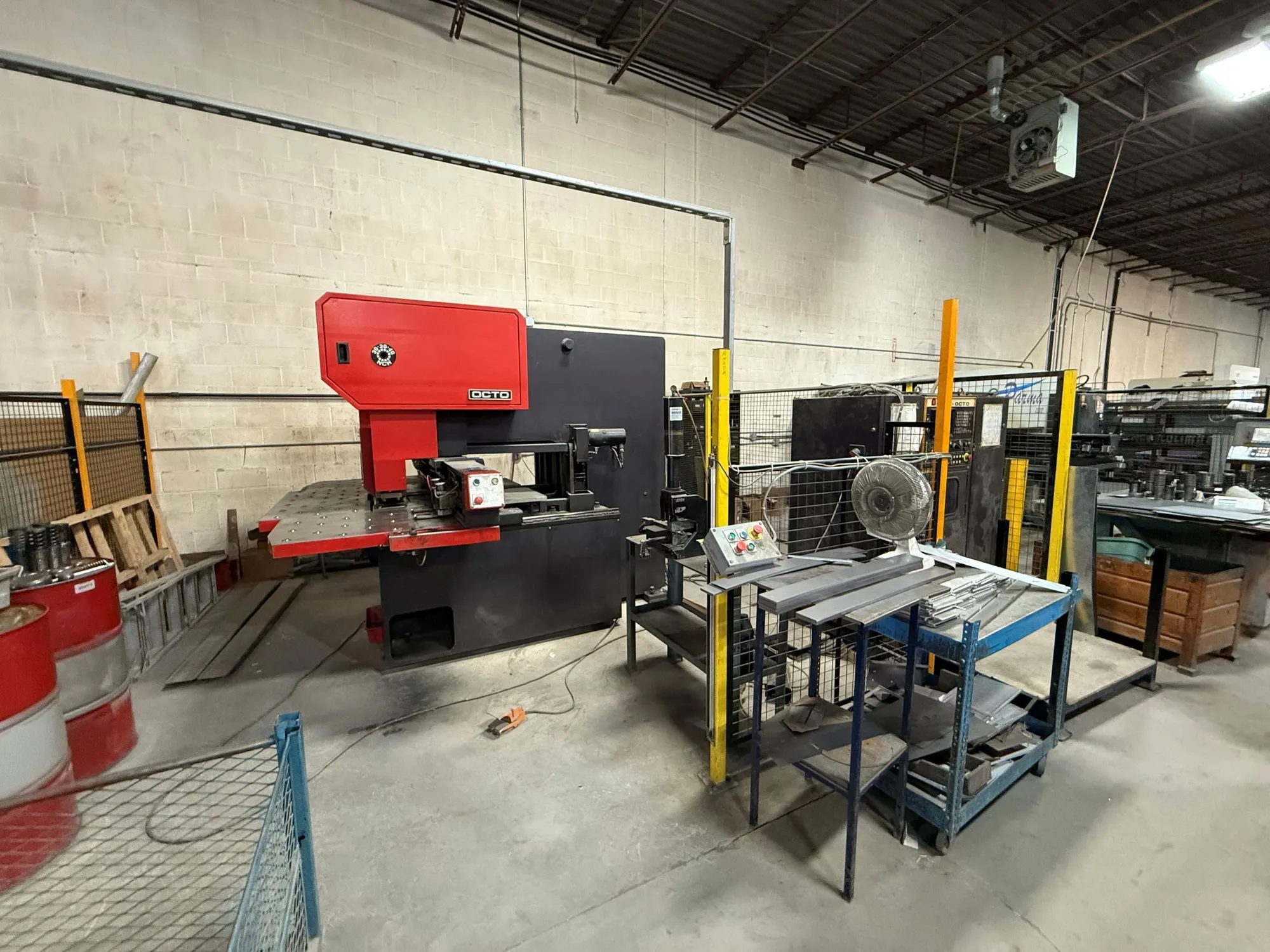

AMADA OCTO CNC TURRET PUNCH PRESS
Model: OCTO 334
Year 1984
Control: Fanuc System 6M
| Tonnage | 30 T | 27.216 t |
| # Turret Stations | 9 station | 9 station |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Weight | 9.8 Ton | 9.8 Ton |
AMADA OCTO CNC TURRET PUNCH PRESS
Model: OCTO 334
Year 1984
Control: Fanuc System 6M
Technical Details: (Subject to verification)
Capacity 30 Tons
Stroke Speed: 300 SPM
Stroke length : 32 mm
Die height : 232mm (distance between bolster and slide bottom dead center)
Station Turret :9
Electrics: Voltage 220V, 3Phase,60 Hz.
Motor: 3.7 kW
Machine weight: 9.8 Ton
