| size | 10" Chuck | 10" Chuck |
| Swing | 17" | 431.8 mm |
| Machining Length | 40" | 1,016 mm |
| Chuck Size | 10" | 254 mm |
| Power | 10 hp | 7.5 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 16" | 406.4 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |

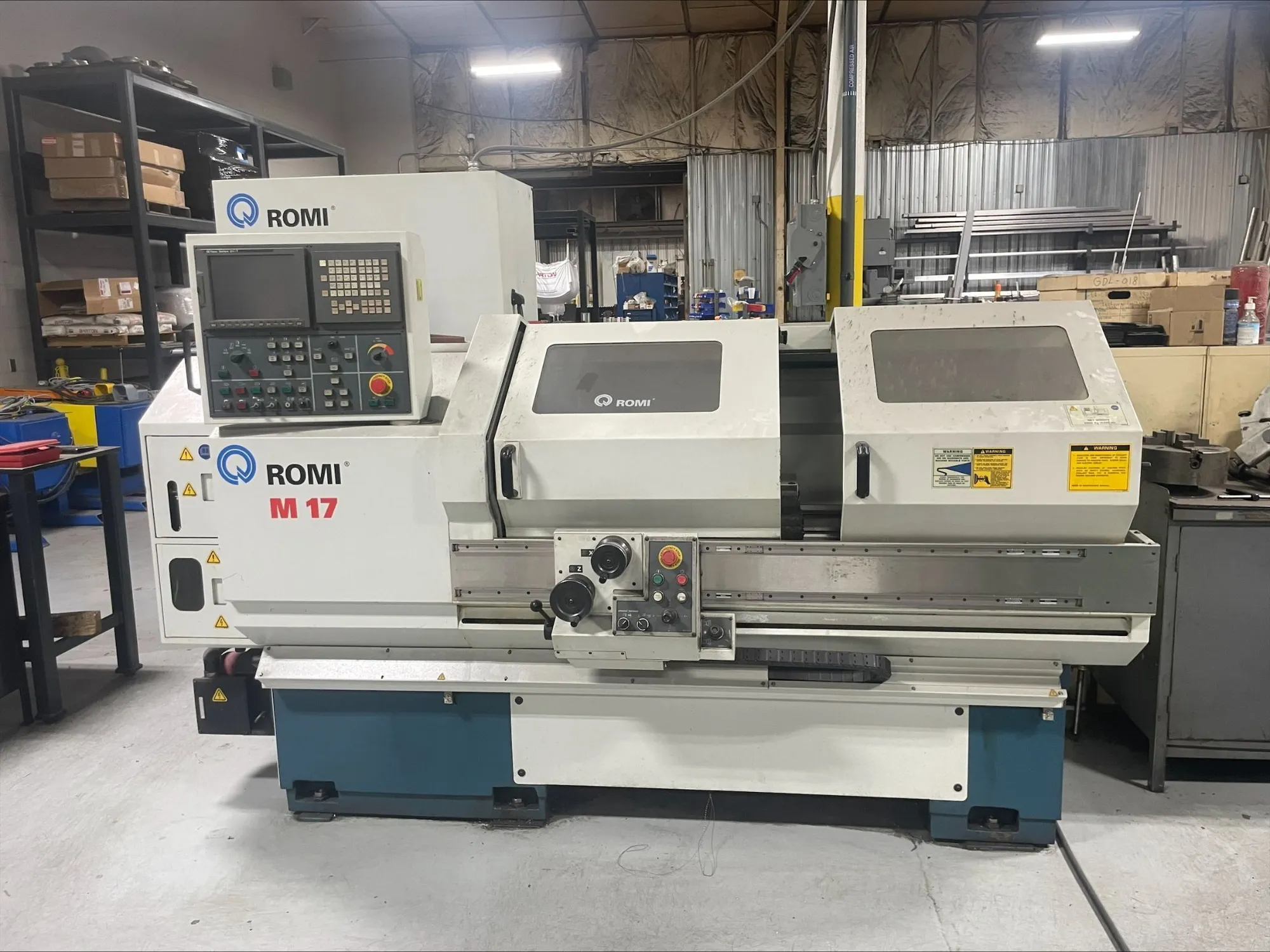

ROMI M17 CNC Lathe
Max swing of 16.93”
Distance between centers 43”
2.5”bore
X rapid is 394ipm
Y rapid is 295ipm
Spindle motor 10hp
Voltage 240v/ 3ph/60Hz
Fanuc 21i-T Conversational Control
10” 6 Jaw Chuck
