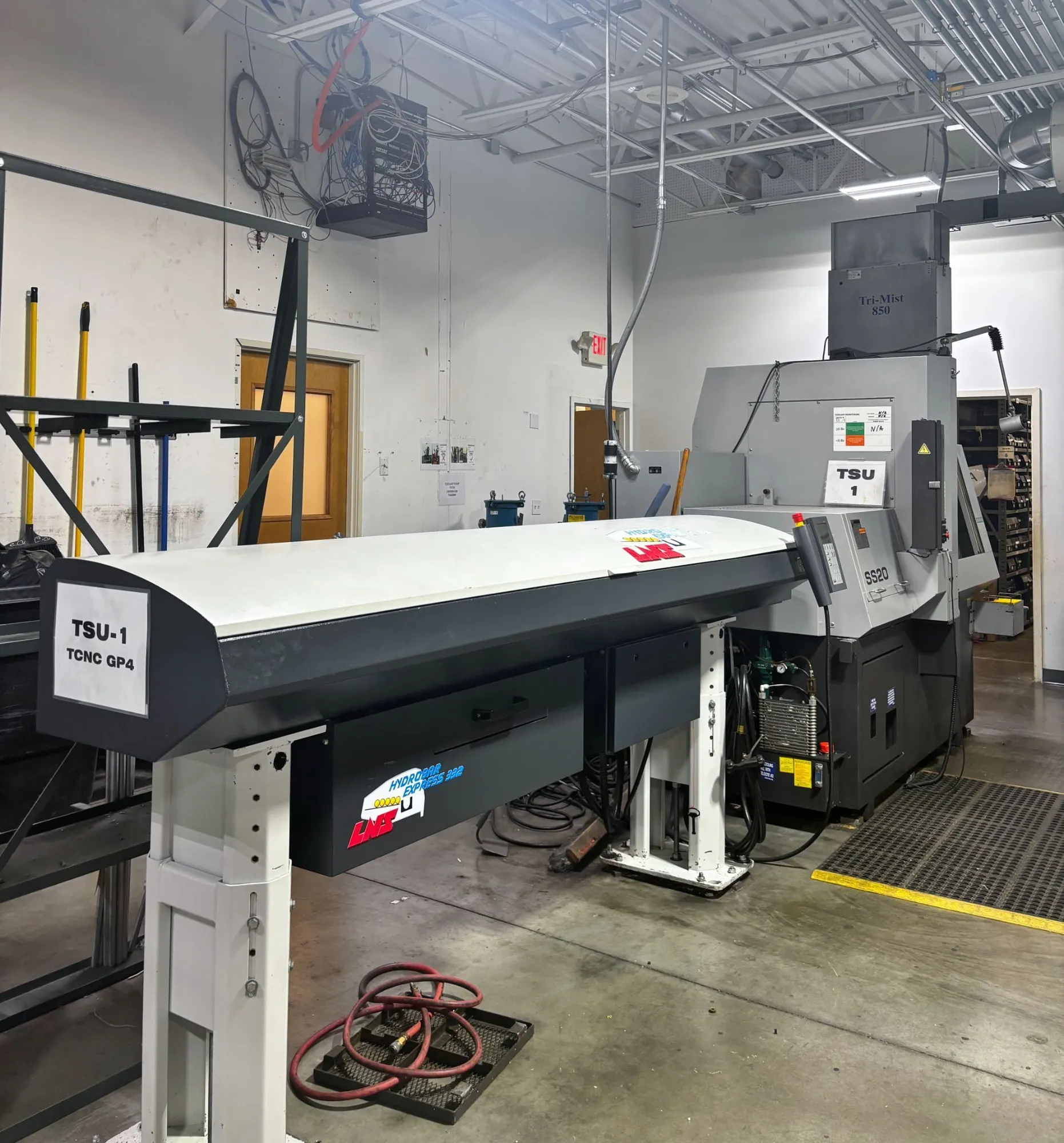

Fanuc 31i-A Control, LNS Hydrobar Express 332 Bar Feeder, Full C-Axis Front & Back, MP Systems High-Pressure Coolant Unit, Mist Collector. This 2008 Tsugami SS20 CNC Swiss lathe is in plant, under power and available immediately.
| BAR CAPACITY | 20 mm | 0.7874" |
| MAX MACHINING LENGTH | 8.66" | 219.96 mm |
| MAX DRILLING DIAMETER | 0.39" | 9.906 mm |
| MAIN SPINDLE MOTOR | 5 hp | 3.7 kW |
| MAIN SPINDLE INDEXING | FULL C-AXIS | FULL C-AXIS |
| MAIN SPINDLE SPEED | 10,000 RPM | 10,000 RPM |
| BACK SPINDLE MOTOR | 5 hp | 3.7 kW |
| BACK SPINDLE INDEXING | FULL C-AXIS | FULL C-AXIS |
| BACK SPINDLE SPEED | 10,000 RPM | 10,000 RPM |
| TOTAL TOOL CAPACITY (POSITIONS) | 24 | 24 |
| LIVE TOOL SPEEDS | 5,000 RPM | 5,000 RPM |
| CONTROLLABLE AXES | 7 | 7 |
FANUC 31i-A CONTROL
LNS HYDROBAR EXPRESS 332 MAGAZINE BAR FEEDER
MP SYSTEMS HIGH-PRESSURE COOLANT UNIT (1,000 PSI/4-PORT)
TRI-MIST 850 MIST COLLECTOR
PARTS EJECTOR
PARTS CATCHER
** FULL REPLACEMENT COST, AS EQUIPPED - $225,000
** MACHINE CUT PRIMARILY INCONEL, NICKLE & STAINLESS
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
