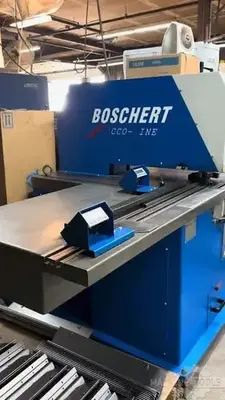

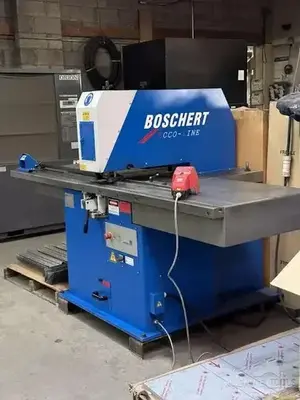

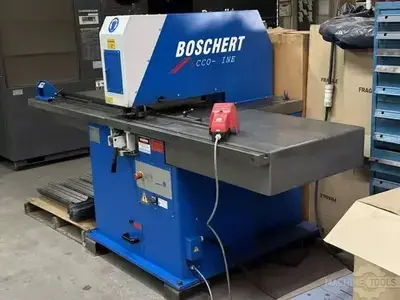

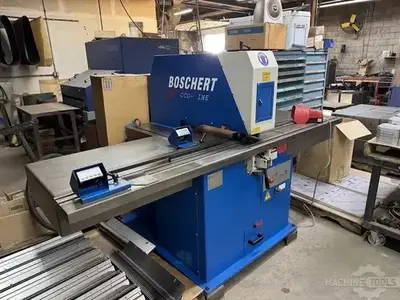

USED 2019 BOSCHERT DIGITAL 500 EL
Overview
28 Ton Turret Punch
Specs
Request a Quote
Add to Cart
Capacity: 28 Ton
Max Sheet Thickness: 0.24″
Max Punch Diameter: 4.13″
Stroke Ram Height: 0″ To 1.57″ Adjustable
Throat Depth: 19.7″
Working Area X/Y-Axis: 47.2″ / 22.4"
Max Strokes Per Minute: 180 SPM
Turret Stations: Single Station
Work Table Dimensions: 19.7" x 39.4"
Press Drive Power: 6.7 HP
Power Requirement: 400V-3ph-50Hz
Brush Table Design: Energy-Saving Design Levels
Free-Standing PC-Based Network CNC Control: High Productivity with Slug Pull Protection
High Speed Punching: Increased Turret Feed Clearance
Power Vacuum Slug Pull System (Patent Pending) Virtually Eliminates Slug Pull Concerns: Vacuum-Powered Slug Pull Protection System
