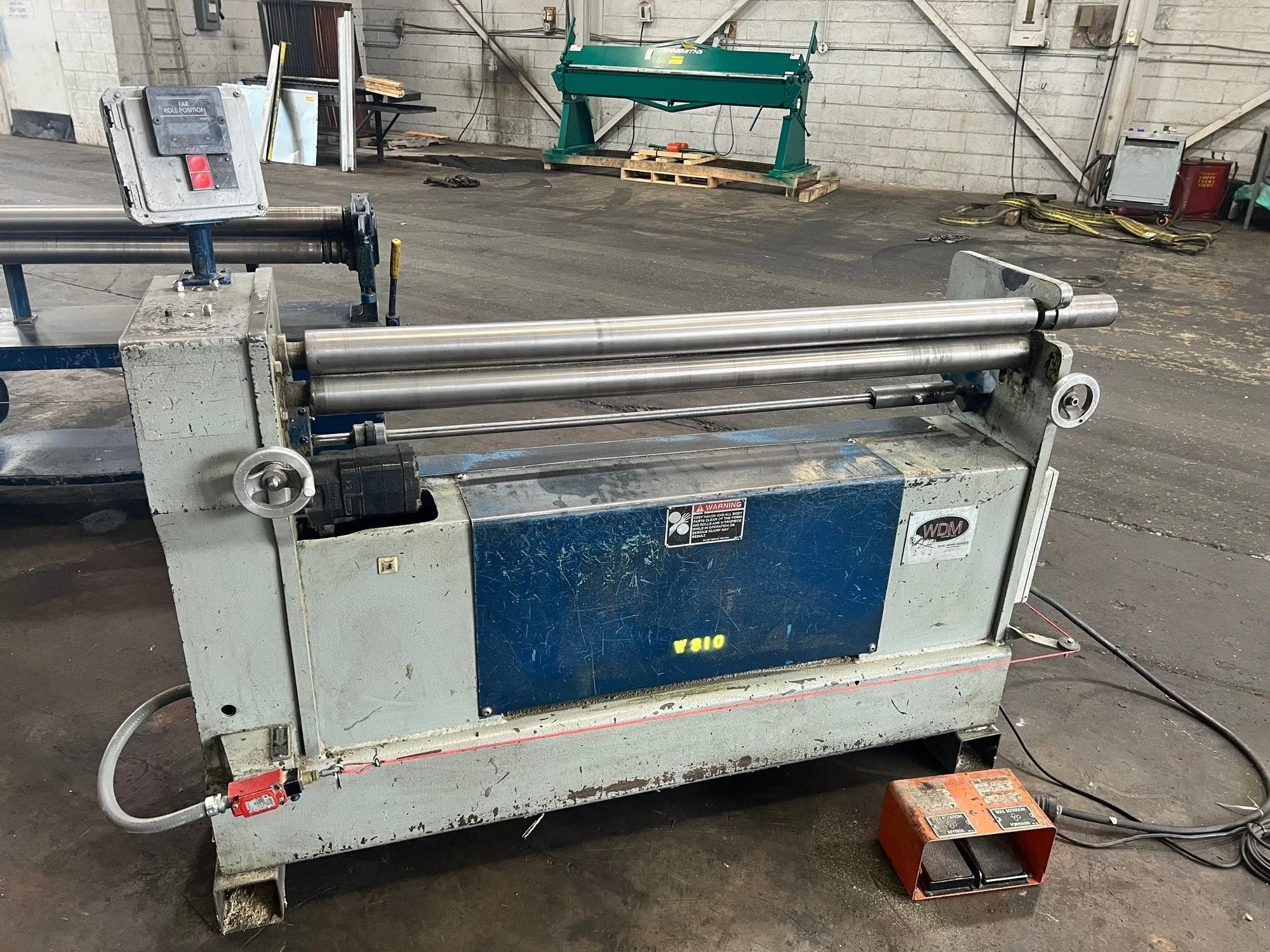

USED 2008 WDM B-2.6-48
Overview
Used 2008 WDM Model B-2.6-48 plate roll: 4' capacity with 20 gauge max thickness, featuring a 3-roll initial pinch design. Equipped with powered bending roll, LED position readout, and hydraulic motor for efficient operation. Dimensions: 56"L x 27.5"W x 38"H.
Specs
Brand: WDM
Model: B-2.6-48
Capacity rating: 20 gauge x 4’ MS
Top Roll Diameter: 2.6”
Motor: 2 HP
Rolling speed: 14 FPM
Voltage: 220 / 440 volt 3 phase (currently wired 220 volt)
Dimensions: 56”L x 27-1/2”W x 38”H
Approximate weight: 570 lbs.
Equipped With
Powered bending roll for up and down adjustment with LED position readout.
Heavy welded steel frame.
Rolls are crowned to compensate for deflection under forming load.
Pinch rolls adjusted by dual hand wheels via a hardened screw and hardened wedge system.
Rolls are driven by a unique hydraulic motor, pump, valve arrangement providing instant start, stop and reverse.
Pinch and top roll rotation powered.
Roll rotation forward and reverse, controlled by dual guarded portable foot pedal.
Industrial style safety cable switch with adjusting winch and reset button.
Top roll swings forward to remove finished tube/work piece.
Swing out top roll for easy work piece removal.
Starting groove in pinch roll to facilitate rapid workpiece prebending and rolling.
Stainless steel scale and pointer to show bending roll position.
