USED HPM 7000 ton

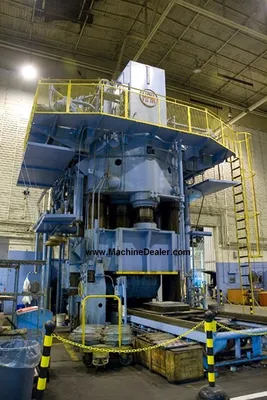

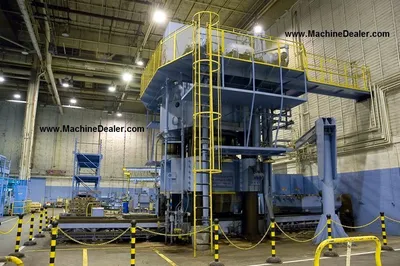

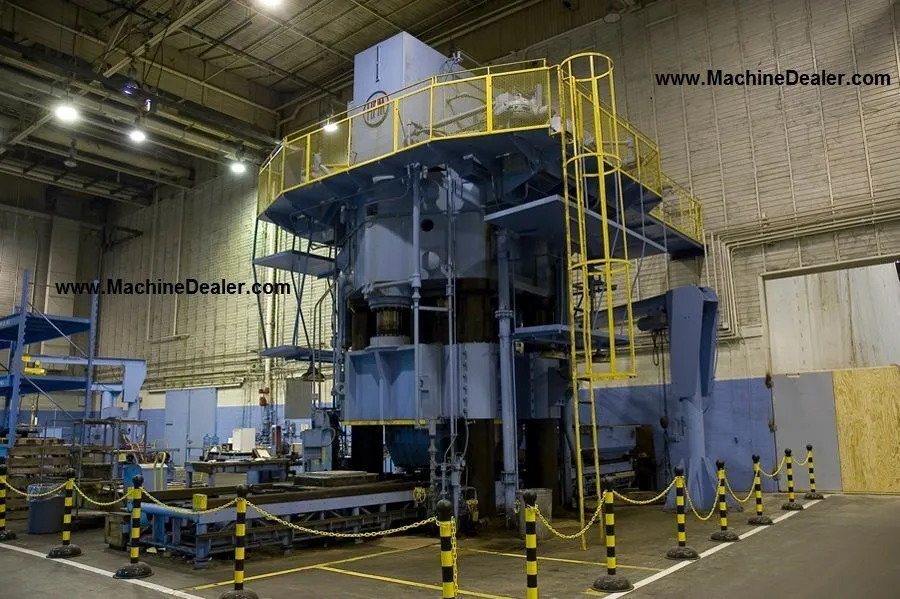

ONE PREOWNED HPM 7000 TON HI-DRAW VERTICAL HYDRAULIC DOWN ACTING FOUR POST GUIDED RAM PRESS W/6300 TON CUSHION,
AGE 1953

SPECIFICATIONS:

Capacity of Ram at 2,740 PSI 7000 Tons
Stroke of Ram 36”
Ram Cylinder Diameter 74”
Shut Height (Over Bolster) 17”
Daylight (Over Bolster) 53”
Area of Bolster Plate
R to L 144”
F to B 72”
Thickness 24”
Area of Bed and Ram
R to L 144”
F to B 72”
Distance Between Posts
R to L 53 ½”
F to B 72 ½”
Total Die Lifting and Stripping Capacity @ 1500 PSI 65 Tons
Floor to Top of Bolster 36”
Speeds
Fast Advance 238 IPM
Pressing 17.5 IPM
Return 238 IPM
Cushion Pressure Infinitely Variable 630-6300 Tons
Cushion Ejection Capacity @ 750 PSI 29 Tons
Cushion Stroke 14”
Oil Reservoir (Approx) 2250 Gal
Motor-Main (2) 200 HP
Voltage 4160 Volts
Approx Weight w/Rolling Bolster 1,200,000 lbs
Approx Overall Dimensions
R to L 534”
F to B 204”
Above Floor 325”

EQUIPPED WITH:

(2) Moving bolster with R to L movement and F to B movement when out of press
10 T-Slots running R to L 30” deep right hand and left hand side of ram
Bolster furnished with 247 pressure pin holes for cushion
Press furnished with oilgear pumps and equipment
Press complete with gauges and electrical controls

CONDITION: Was very Good . Was Remanufactured in 1980. Last used as a rubber pad forming press in an aerospace plant. Well maintained press.
Will require rebuilding and updating.

LOCATION: USA- Disassembled and in storage.
