USED 1954 BLISS PRESSES HS-7000-4R-48-144
Overview
Description

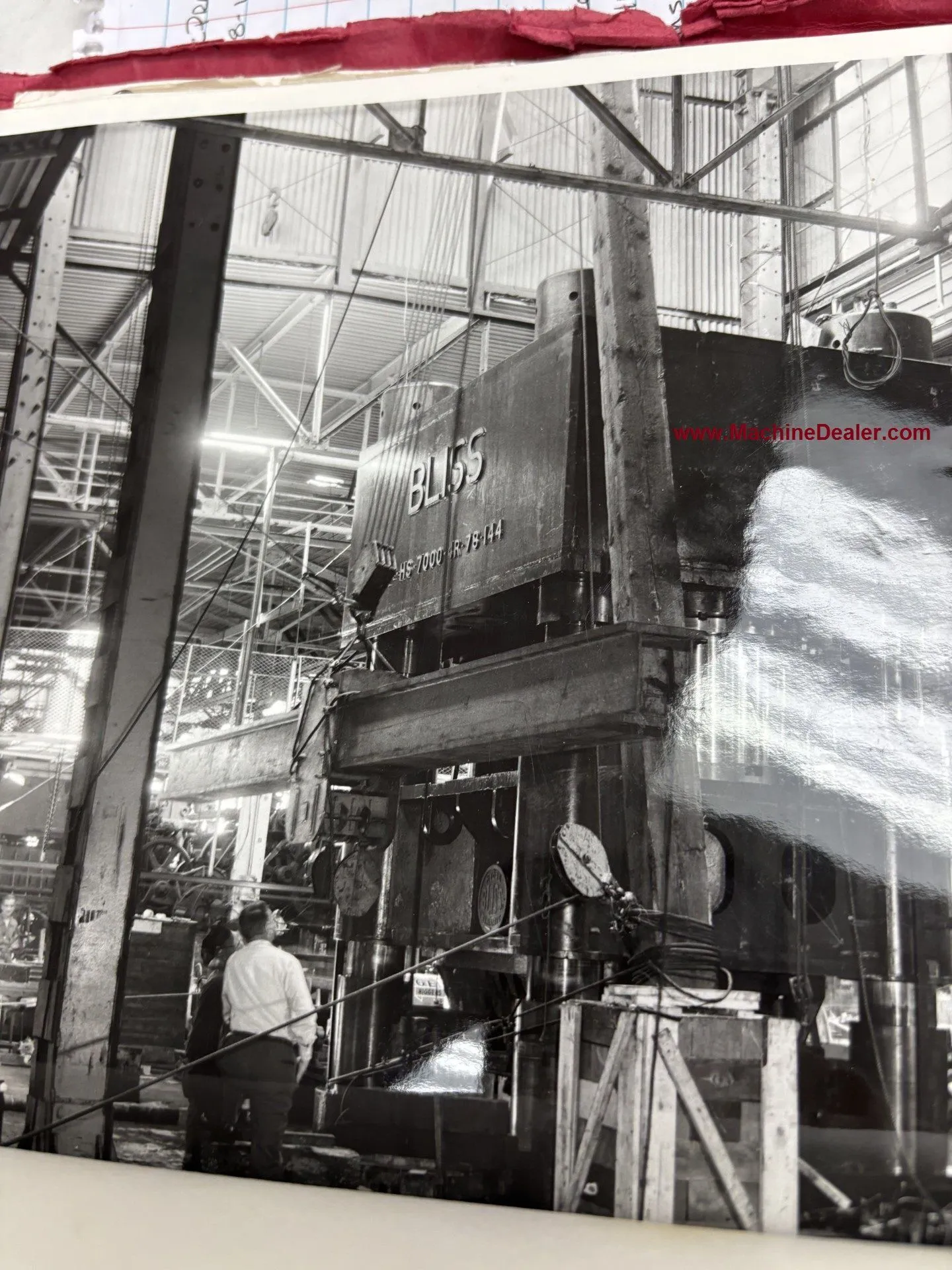

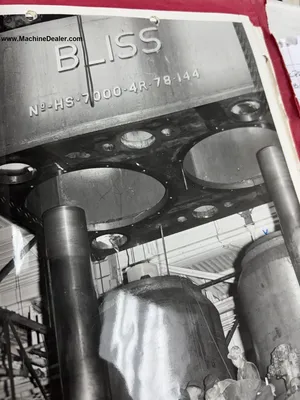

ONE PREOWNED BLISS 7000 TON VERTICAL HYDRAULIC DOWN ACTING FOUR POST GUIDED RAM PRESS MODEL HS-7000-4R-48-144
AGE 1954
Specifications
| Tonnage | 7,000 T | 6,350.301 t |
|---|---|---|
| Stroke | 30" | 762 mm |
| Daylight | 43" | 1,092.2 mm |
| Power | 2,002 hp | 1,492.9 kW |
| Bed W | 48" | 1,219.2 mm |
| Bed L | 144" | 3,657.6 mm |
| Dimensions | 260" L-R, 144"F-B, 406" T | 260" L-R, 144"F-B, 406" T |
| Weight | 995,155 LBS | 995,155 LBS |
ONE PREOWNED BLISS 7000 TON VERTICAL HYDRAULIC DOWN ACTING FOUR POST GUIDED RAM PRESS MODEL HS-7000-4R-48-144
AGE 1954
SPECIFICATIONS:
Capacity of Ram 7000 Tons
Stroke of Ram 30”
Ram Cylinders Diameter (2) 42”
Shut Height (Over Bolster) 13”
Daylight (Over Bolster) 42”
Area of Bolster Plate
R to L 144”
F to B 48”
Thickness 24”
Area of Bed and Ram
R to L 144”
F to B .48”
Distance Between Posts
R to L 120”
F to B .80”
Floor to Top of Bolster .36”
Speeds (Approximate)
Fast Advance 238 IPM
Pressing 17.5 IPM
Return 238 IPM
Oil Reservoir (Approximate) 2250 Gal
Motor-Main (2) 200 HP
Voltage 480 Volts
Approx Weight 995,155 lbs
Approx Overall Dimensions
R to L 260”
F to B 144”
Above Floor 406”
Stk#3053CSH
Page 2
WEIGHTS:

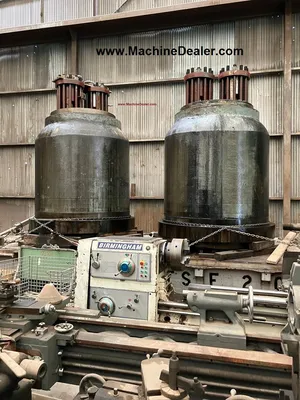

Cylinders 121,000 lbs.
Bed 166,000 lbs
Crown 175,000 lbs
Tie rods 177,500 lbs
Bolster & tables 68,000 lbs
Misc. pumps, motors, piping and valves
EQUIPPED WITH:
Press furnished with Oilgear pumps and equipment
Press complete with gauges and electrical controls
Documentation for repairs and maintenance

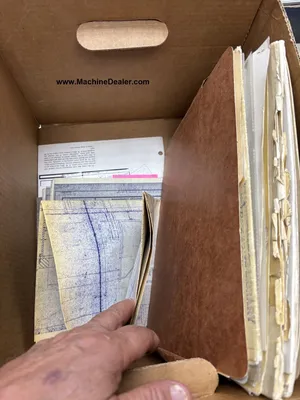

Original blueprints of mechanical, electrical and hydraulics
CONDITION: Was in good operating condition when removed from service
LOCATION: USA- Disassembled and in storage.
PRICE……………………….AS IS/WHERE IS…………..……$ON REQUEST
Stk#3053CSH
