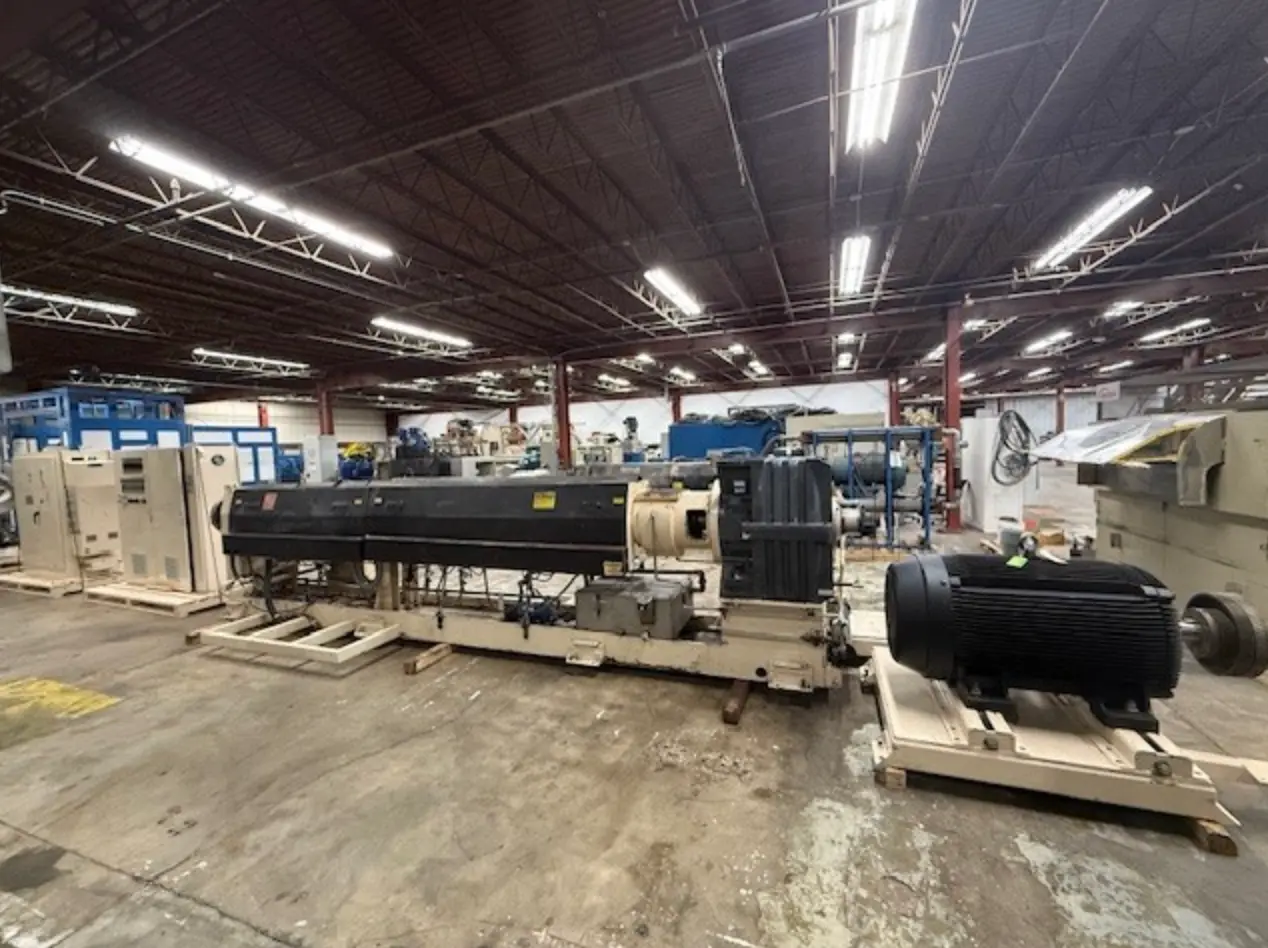

USED 1994 6" Davis Standard Single Screw Extruder, 60IN60TPIH, 400hp, 34:1 L/D
Overview
Specifications
Product Features
- Used 6" Davis Standard Single Screw Extruder, Model 60IN60TPIH,
- 6" Davis Standard Single Screw Extruder, 34:1 L/D Water Cooled, 6 Cooling Zones
- Vented Barrel (Plugged) Vent Located 130" From Center of Feed Throat
- Cooling System Consists of 1/2hp Recirculation Pump, Heat Exchanger, 32" x 24" x 12" Water Reservoir
- 400hp WEG AC Motor, 1790rpm, ABB AC Drive
- Davis Standard Gearbox Model 60IN60TPIH, 17.2 Gearbox Ratio, 526hp Capacity with 1.50 Service Factor
- Temperature Control Panel, 6 Barrel Zone Solo 4896 Controllers, 7 Die Zone Omron E5EC Controllers
- Speed Pod, Screw RPM, Load Percentage & Pressure Transducer Gauges
- Gearbox Serial Number: PT238
- 42" Centerline
- Hopper Included
- Extruder New in 1994
- Footprint: 25' x Approx. 8'
