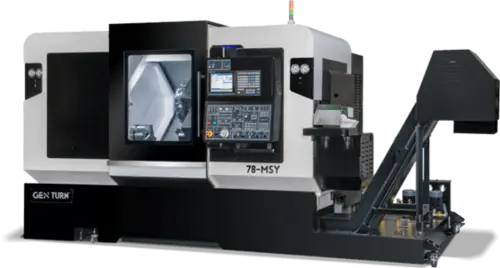

NEW GENTURN 78-MSY
Overview
Description
• 78 mm 3” Bar Capacity
• Twin 4,000 RPM Opposed Spindles
• 16-Driven Tool Positions each station can mount multiple tools
• “Y” Axis with ±1.968” Travel
• Full “C” Axis on Main and Sub-Spindle
• Complete Front & Back Work
Specifications
| # Axis | 6 | 6 |
|---|---|---|
| Swing | 12" | 304.8 mm |
| Machining Length | 24.8" | 629.92 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3.07" | 77.978 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 12.2" | 309.88 mm |
| Weight | 17,650 lbs | 17,650 lbs |
