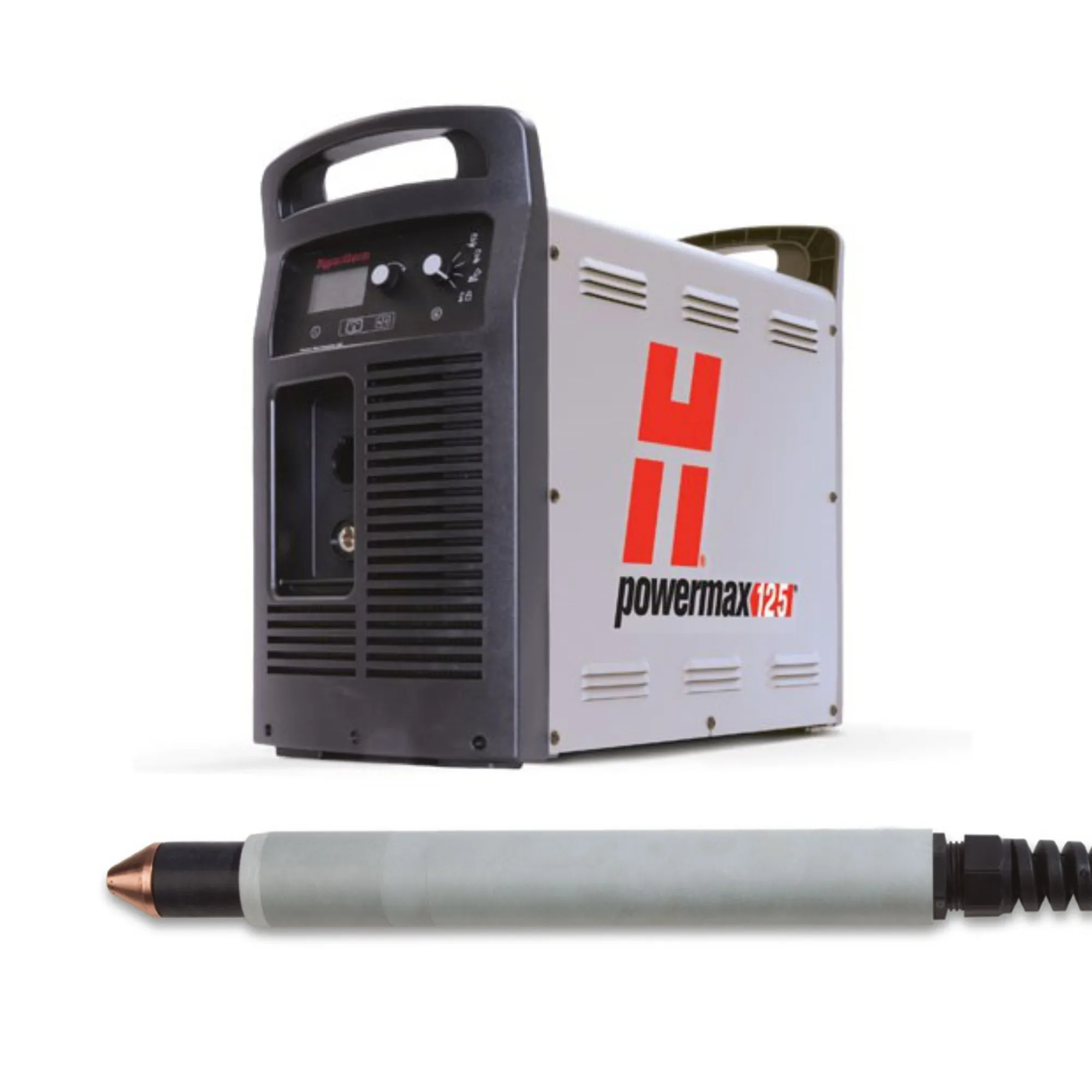

Cutting:
Capacity: Recommended
Thickness: 1-1/2 in
Cut speed: 18 ipm
Capacity: Recommended
Thickness: 1-3/4 in
Cut speed: 10 ipm
Capacity: Severance (hand cutting)
Thickness: 2-1/4 in
Cut speed: 5 ipm
Capacity: Pierce*
Thickness: 1 in
Cut speed: ,
Gouging: Capacity: Typical Gouge
Metal removal rate: 27.6 lbs. per hour
Groove profile*: 0.17-0.31 in D x 0.24-0.39 in W,
Notes:
Pierce rating for handheld use or with automatic torch height control,
Actual groove profile varies with torch angle, arc stretch and technique
Input voltages: 480/600 V, 3-PH, 50/60 Hz
Kilowatt output: 21.9 kW
Input current @ 21.9 kW: 480/600 V, 31/24 A
Output current: 30-125 A
Rated output voltage: 175 VDC
Duty cycle @ 104'F: 100% @ 125 A, 480/600 V, 3-PH
Open circuit voltage (OCV): 320 VDC
Dimensions with handles: 23.3\D; 10.8\W; 20.0\H
Weight w/20\ torch:
480V: 105.7 lbs
600V: 104.7 lbs
Gas supply: Clean, dry, oil-free air or nitrogen
Recommended gas inlet flow rate/pressure: Cutting: 550 scfh @ 0.85 psi
Gouging: 450 scfh @ 0.60 psi
Input power cable length: 10'
Power supply type: Inverter - IGBT
Engine drive requirement: 40 kW for full 125 A output
