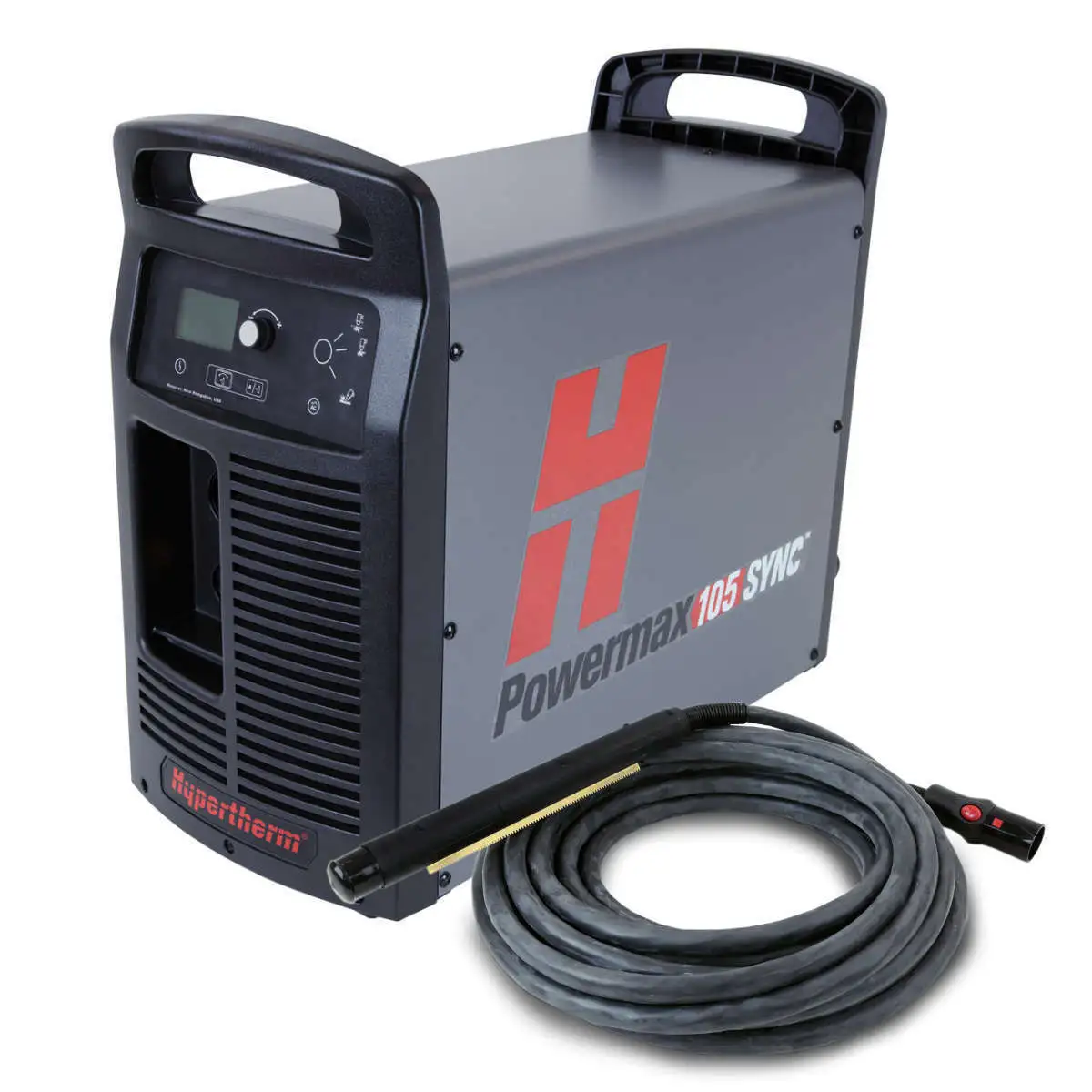

Cutting:
Capacity: Recommended
Thickness: 1-1/4 in
Cutting speed: 20 ipm
Capacity: Recommended
Thickness: 1-1/2 in
Cutting speed: 10 ipm
Capacity: Severance
Thickness: 2 in
Cutting speed: 5 ipm
Capacity: Pierce*
Thickness: 7/8 in
Cutting speed:
Notes:
Pierce rating for handheld use or with automatic height control
Gouging with maximum removal
Gouging: Capacity: Typical Gouging
Metal removal rate: 19.1 lbs. per hour
Groove profile: .26 in D x .24 in W
Input voltages:
200-600 V 3-PH 50/60Hz
Kilowatt output: 16.8 kW
Input current:
3-PH:
200 V: 58 A
208 V: 56 A
240 V: 49 A
480 V: 25 A
600 V: 22 A
At power: 16.8 kW
Output current: 30-105 A
Rated output voltage: 160 VDC
Duty cycle @ 104F: 70%: 105 A 240 V 3-PH
80%: 105 A 480-600 V 3-PH
100%: 94 A 480-600 V 3-PH 88 A 240 V 3-PH
Open circuit voltage (OCV): 300 VDC
Dimensions with handles: Depth: 23.3 in
Width: 10.8 in
Height: 20 in
Weight w/25' torch: 95 lbs
Gas supply: Clean dry oil-free air or nitrogen
Optimum gas inlet pressure: 110-120 psi
Minimum gas inlet pressure: 80 psi
Recommended inlet gas flow rate: Cutting: 550 scfh 92 scfm @ 90 psi
Gouging: 550 scfh 92 scfm @ 70 psi
Input power cable length: 10 ft
Power supply type: Inverter - IGBT
Engine drive requirement: 30 kW for full 105 A output
Certifications: CSA-certified for use in the Americas and Asia except China
Warranty: Power supplies: 3-year
Torches: 1-year
