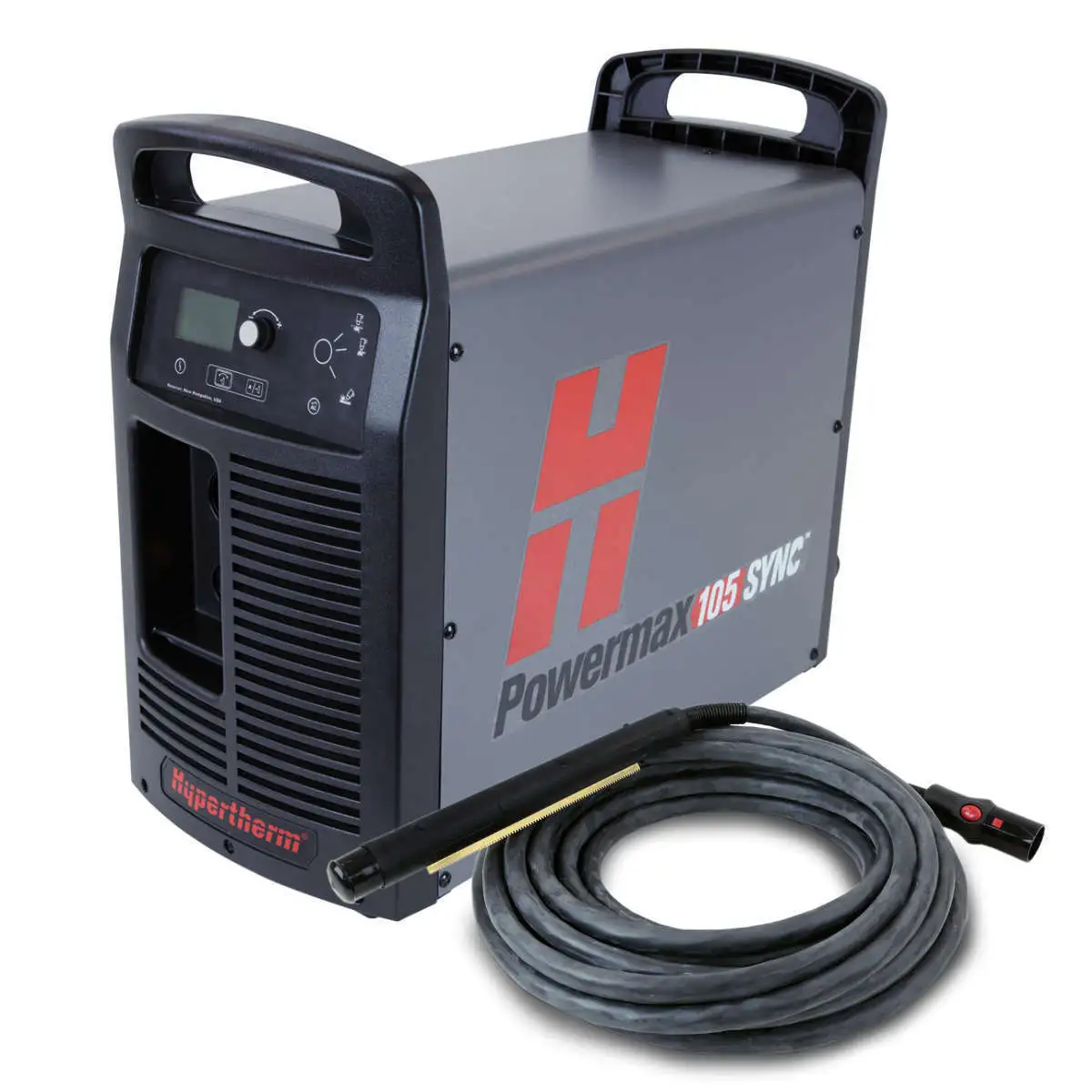

Cutting:
Capacity: Recommended
Thickness: 1-1/4 in
Cutting speed: 20 ipm
Capacity: Recommended
Thickness: 1-1/2 in
Cutting speed: 10 ipm
Capacity: Severance
Thickness: 2 in
Cutting speed: 5 ipm
Capacity: Pierce*
Thickness: 7/8 in
Cutting speed:
Notes:
Pierce rating for handheld use or with automatic torch height control
Gouging with maximum removal
Gouging: Capacity: Typical Gouging
Metal removal rate: 19.1 lbs per hour
Groove profile: 0.26 in D x 0.24 in W
Input voltages: 200-600 V, 3-PH, 50/60Hz
Kilowatt output: 16.8 kW
Input current: 200/208/240/480/600 V, 3-PH: 58/56/49/25/22 A @ 16.8 kW
Output current: 30-105 A
Rated output voltage: 160 VDC
Duty cycle @ 104F: 70%: 105 A, 240 V, 3-PH
80%: 105 A, 480-600 V, 3-PH
100%: 94 A, 480-600 V, 3-PH, 88 A, 240 V, 3-PH
Open circuit voltage (OCV): 300 VDC
Dimensions with handles: 23.3\ D; 10.8\ W; 20\ H,
Weight w/25' torch: 95 lbs.
Gas supply: Clean, dry, oil-free air or nitrogen
Optimum gas inlet pressure: 110-120 psi
Minimum gas inlet pressure: 80 psi
Recommended inlet gas flow rate: Cutting: 550 scfh, 92 scfm @ 90 psi
Gouging: 550 scfh, 92 scfm @ 70 psi
Input power cable length: 10'
Power supply type: Inverter - IGBT
Engine drive requirement: 30 kW for full 105 A output
Certifications: CSA-certified for use in the Americas and Asia, except China
Warranty: Power supplies: 3-year
Torches: 1-year
