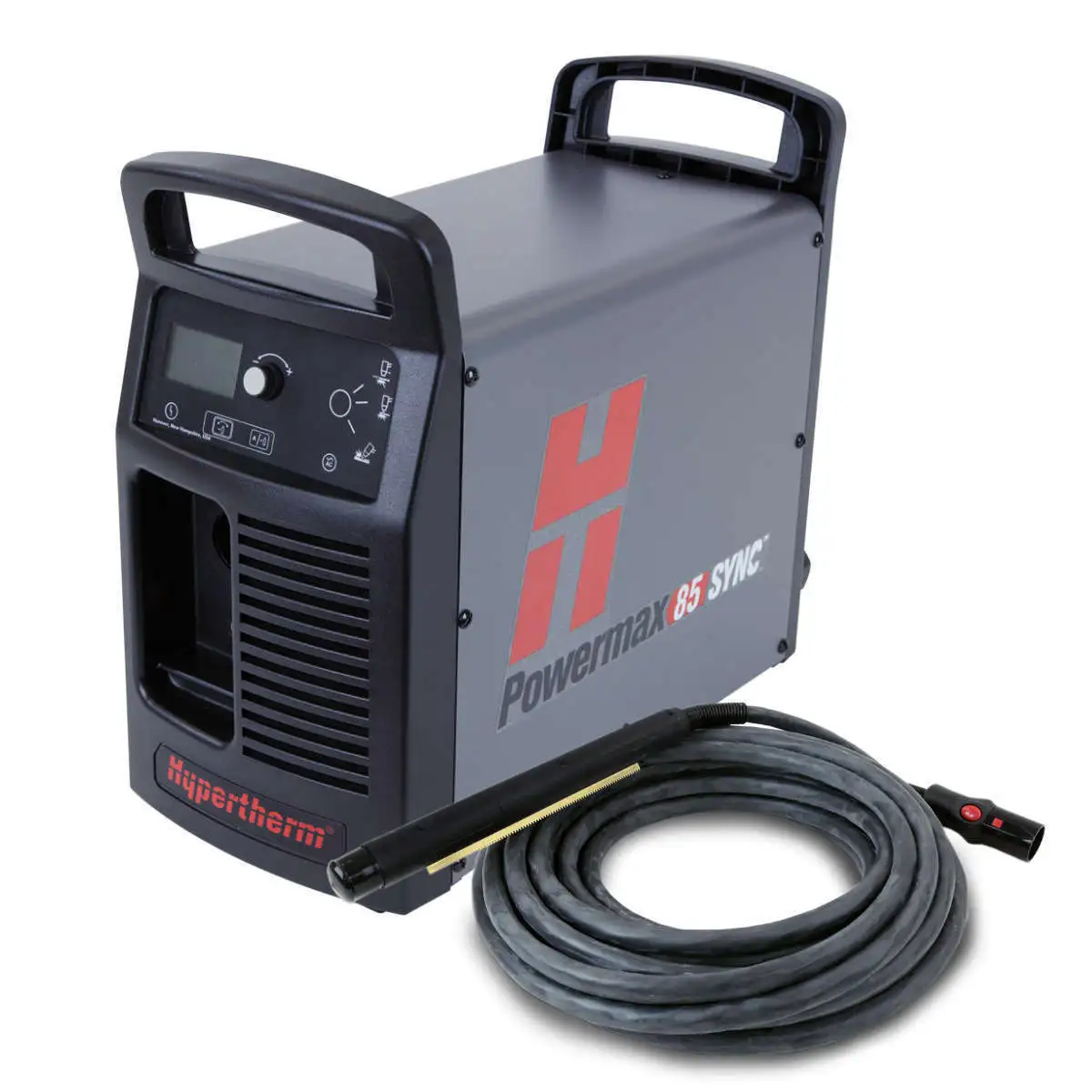

Cutting:
Capacity: Recommended
Thickness: 1 in
Cutting speed: 20 ipm
Capacity: Recommended
Thickness: 1-1/4 in
Cutting speed: 10 ipm
Capacity: Severance
Thickness: 1-1/2 in
Cutting speed: 5 ipm
Capacity: Pierce*
Thickness: 3/4 in
Cutting speed:
Notes:
Pierce rating for handheld use or with automatic height control
Gouging with maximum removal
Gouging: Capacity: Typical Gouging
Metal removal rate: 18.8 lbs per hour
Groove profile: 0.14 in D x 0.26 in W
Input voltages:
200-480 V 1-PH 50/60 Hz
200-600 V 3-PH 50/60 Hz
Kilowatt output: 12.2 kW
Input current:
1-PH:
200 V: 70 A @ 12.2 kW
208 V: 68 A @ 12.2 kW
240 V: 58 A @ 12.2 kW
480 V: 29 A @ 12.2 kW
3-PH: 200 V: 42 A @ 12.2 kW
208 V: 40 A @ 12.2 kW
240 V: 35 A @ 12.2 kW
480 V: 18 A @ 12.2 kW
600 V: 17 A @ 12.2 kW
Output current: 20-85 A
Rated output voltage: 143 VDC
Duty cycle @ 104°F: 60%: 85 A 230-600 V 3-PH 85 A 480 V 1-PH
50%: 85 A 240 V 1-PH 85 A 200-208 V 3-PH
40%: 85 A 200-208 V 1-PH
100%: 66 A 230-600 V 1/3-PH
Open circuit voltage (OCV): 305 VDC
Dimensions with handles: Depth: 19 in
Width: 9.2 in
Height: 17 in
Weight with 25' torch: 67 lbs
Gas supply: Cutting: Clean dry oil-free air or nitrogen
Gouging: Clean dry oil-free air or nitrogen
Gas inlet pressure: Optimum: 110-120 psi
Minimum: 75 psi
Recommended inlet gas flow rate: Cutting: 450 scfh 7.5 scfm @ 85 psi
Gouging: 450 scfh 7.5 scfm @ 70 psi
Input power cable length: 10 ft
Power supply type: Inverter - IGBT
Engine drive requirement: 20 kW for full 85 A output
Certifications: CSA-certified for use in the Americas and Asia except China
Warranty: Power supply: 3-year
Torch: 1-year
