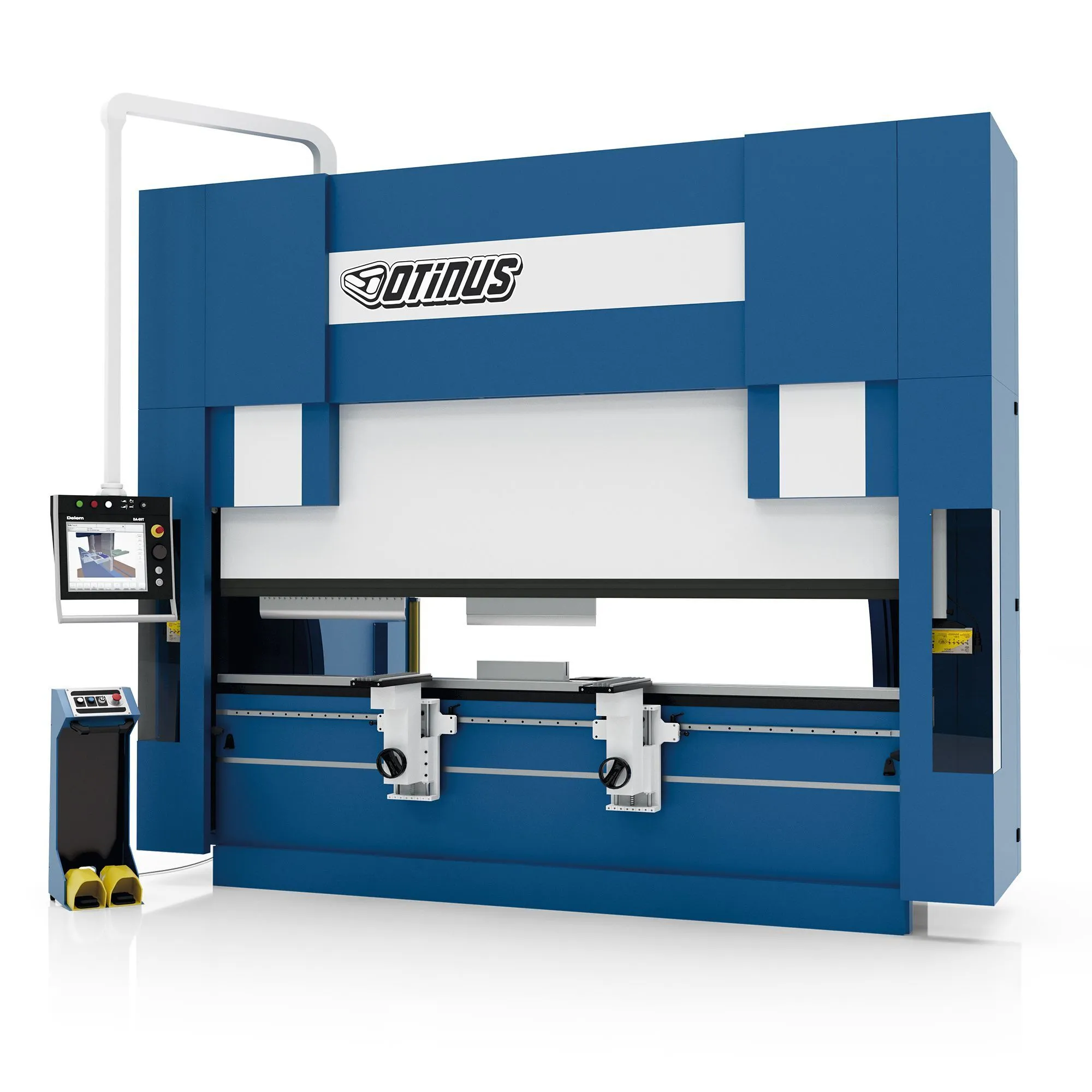

NEW OTINUS PBO-3722-PRO
Overview
OTINUS SPECIAL OFFER: 0% LEASING! Don't wait for a better moment – it's now. Otinus machines with financing at no extra cost. A straightforward offer: you only pay the cost of the machine. Optimize your taxes in 2026 and choose reliable equipment. Contact us to find out more!
Specifications
Imperial:
Tonnage: 237 t (2150 kN)
Motor Output: 18.5 kW
Approx. Weight: 30300 lb
Max Working Length [A]: 145 in
Distance Between Side Frames [B]: 126 in
Stroke [L]: 16 in
Throat Gap [N]: 20 in
Metric:
Tonnage: 2150 kN (237 t)
Motor Output: 18.5 kW
Approx. Weight: 13600 kg
Max Working Length [A]: 3683 mm
Distance Between Side Frames [B]: 3200 mm
Stroke [L]: 410 mm
Throat Gap [N]: 510 mm
Delem DA-69T controller
- 2D and 3D graphical touch programming module
- 3D visualization for simulation and processing
- 17" colour TFT screen of high resolution
- Full Windows operating system
- Compatibility with the Modusys Delem system (modular scalability and adaptability)
- External USB port
- Detailed user support in a multitasking environment
- Bending using the sensors in parameter adjustment menu
- Profile-T3D offline software
Note: Images provided in the quote are for reference only, and the actual machines may appear differently.
Specs
Imperial:
Tonnage: 237 t (2150 kN)
Motor Output: 18.5 kW
Approx. Weight: 30300 lb
Max Working Length [A]: 145 in
Distance Between Side Frames [B]: 126 in
Stroke [L]: 16 in
Throat Gap [N]: 20 in
Metric:
Tonnage: 2150 kN (237 t)
Motor Output: 18.5 kW
Approx. Weight: 13600 kg
Max Working Length [A]: 3683 mm
Distance Between Side Frames [B]: 3200 mm
Stroke [L]: 410 mm
Throat Gap [N]: 510 mm
Equipped With
Delem DA-69T controller
- 2D and 3D graphical touch programming module
- 3D visualization for simulation and processing
- 17" colour TFT screen of high resolution
- Full Windows operating system
- Compatibility with the Modusys Delem system (modular scalability and adaptability)
- External USB port
- Detailed user support in a multitasking environment
- Bending using the sensors in parameter adjustment menu
- Profile-T3D offline software
