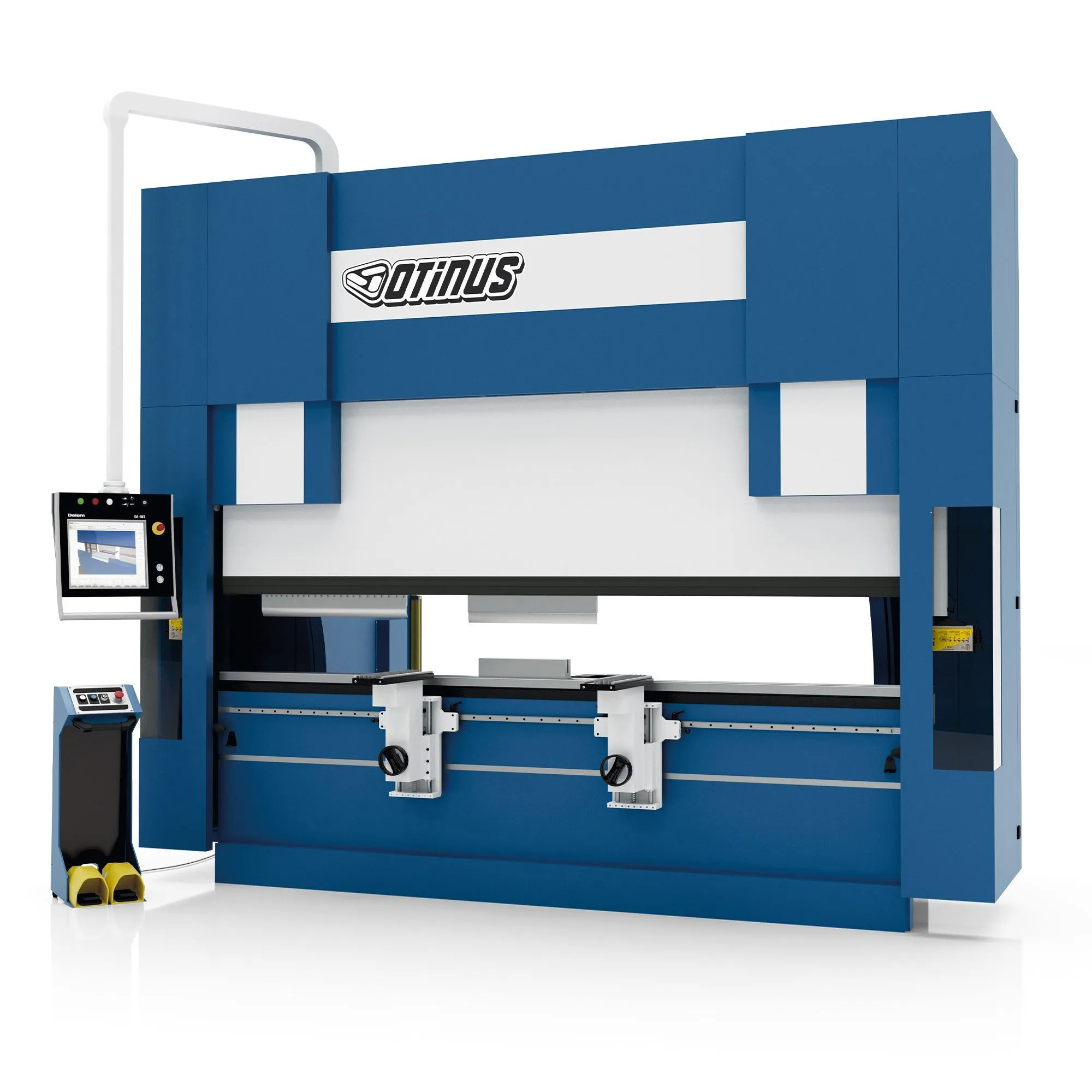

NEW OTINUS PBO-1204-PRO

OTINUS SPECIAL OFFER: 0% LEASING! Don't wait for a better moment – it's now. Otinus machines with financing at no extra cost. A straightforward offer: you only pay the cost of the machine. Optimize your taxes in 2026 and choose reliable equipment. Contact us to find out more!

Specifications
Imperial:
Tonnage: 44 t (400 kN)
Motor Output: 4.0 kW
Oil Tank Volume: 21 gal
Speed:
Approach: 160 mm/s
Working: 10 mm/s
Return: 130 mm/s
Approx. Weight: 7400 lb
Inside Frames: 42 in
Max Working Length [A]: 50 in
Distance Between Side Frames [B]: 42 in
Side Frame Width [C]: 58 in
Bed Height [G]: 31 in
Daylight Opening [K]: 18 in
Stroke [L]: 8 in
Table Width [M]: 2 in
Throat Gap [N]: 16 in

Metric:
Tonnage: 400 kN (44 t)
Motor Output: 4.0 kW
Oil Tank Volume: 80 l
Speed:
Approach: 160 mm/s
Working: 10 mm/s
Return: 130 mm/s
Approx. Weight: 3300 kg
Inside Frames: 1070 mm
Max Working Length [A]: 1270 mm
Distance Between Side Frames [B]: 1070 mm
Side Frame Width [C]: 1470 mm
Bed Height [G]: 800 mm
Daylight Opening [K]: 455 mm
Stroke [L]: 215 mm
Table Width [M]: 60 mm
Throat Gap [N]: 410 mm

Delem DA-66T controller:
- Automatic control of 8 axes translating into more efficient bending
- Storing up to 500 programs, each consisting of 25 steps and 99 repetitions
- Saving up to 30 upper and lower dies
- Controller with 2D/3D programing mode
- 17" TFT touch screen
- Windows with controller software (possibility to create programs on the PC)
- Crowning control managed through the controller.
- Complex Delem design
- USB that allows connecting in new devices
- Available space for connecting a bending angle sensor
- Controls and sensors prevent collisions along individual axes.

Note: Images provided in the quote are for reference only, and the actual machines may appear differently.

Imperial:
Tonnage: 44 t (400 kN)
Motor Output: 4.0 kW
Oil Tank Volume: 21 gal
Speed:
Approach: 160 mm/s
Working: 10 mm/s
Return: 130 mm/s
Approx. Weight: 7400 lb
Inside Frames: 42 in
Max Working Length [A]: 50 in
Distance Between Side Frames [B]: 42 in
Side Frame Width [C]: 58 in
Bed Height [G]: 31 in
Daylight Opening [K]: 18 in
Stroke [L]: 8 in
Table Width [M]: 2 in
Throat Gap [N]: 16 in

Metric:
Tonnage: 400 kN (44 t)
Motor Output: 4.0 kW
Oil Tank Volume: 80 l
Speed:
Approach: 160 mm/s
Working: 10 mm/s
Return: 130 mm/s
Approx. Weight: 3300 kg
Inside Frames: 1070 mm
Max Working Length [A]: 1270 mm
Distance Between Side Frames [B]: 1070 mm
Side Frame Width [C]: 1470 mm
Bed Height [G]: 800 mm
Daylight Opening [K]: 455 mm
Stroke [L]: 215 mm
Table Width [M]: 60 mm
Throat Gap [N]: 410 mm

Delem DA-66T controller:
- Automatic control of 8 axes translating into more efficient bending
- Storing up to 500 programs, each consisting of 25 steps and 99 repetitions
- Saving up to 30 upper and lower dies
- Controller with 2D/3D programing mode
- 17" TFT touch screen
- Windows with controller software (possibility to create programs on the PC)
- Crowning control managed through the controller.
- Complex Delem design
- USB that allows connecting in new devices
- Available space for connecting a bending angle sensor
- Controls and sensors prevent collisions along individual axes.
