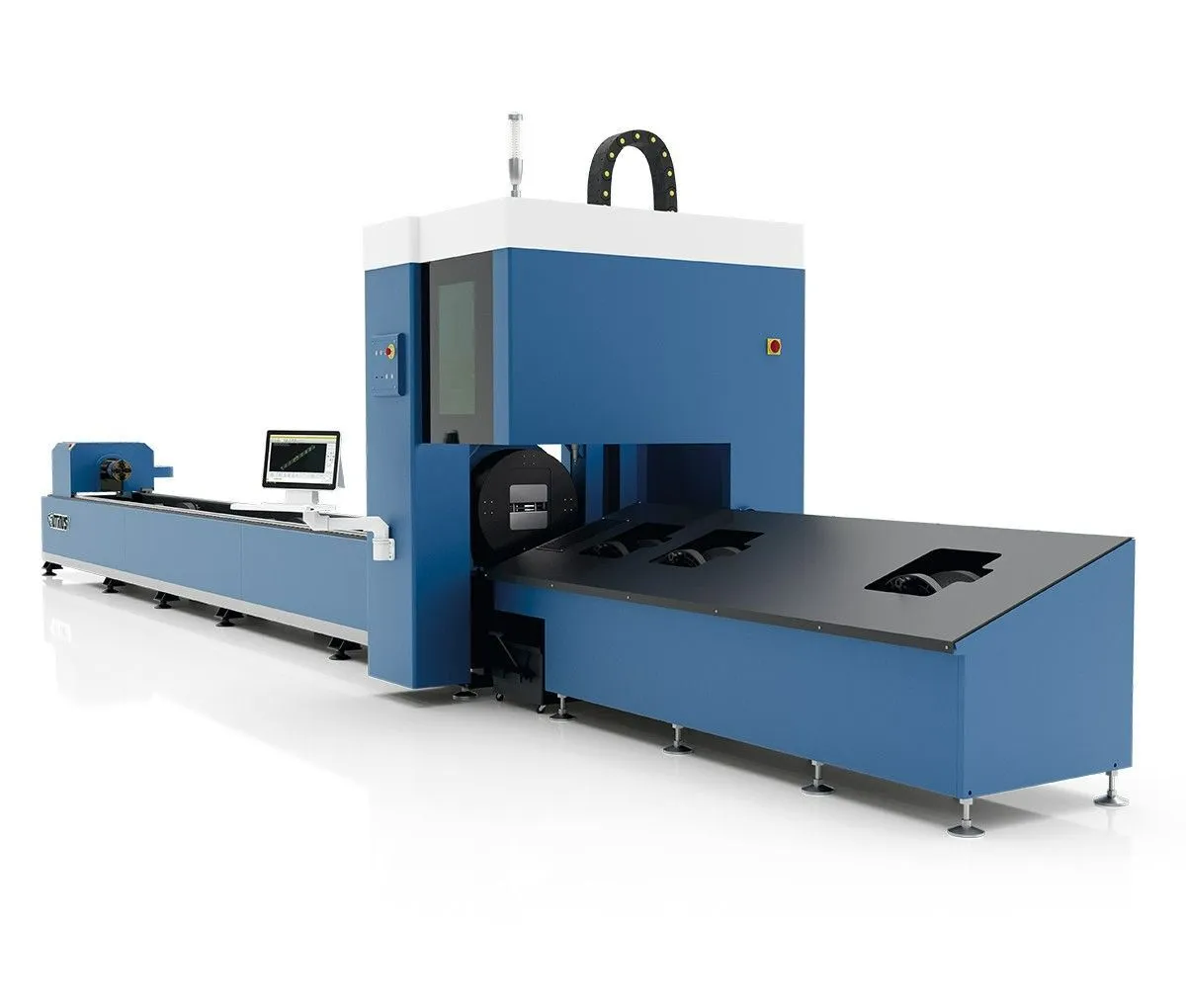

NEW OTINUS FLT-6022-1000W
Overview
OTINUS SPECIAL OFFER: 0% LEASING! Don't wait for a better moment – it's now. Otinus machines with financing at no extra cost. A straightforward offer: you only pay the cost of the machine. Optimize your taxes in 2026 and choose reliable equipment. Contact us to find out more!
Specifications
Maximum height of a section: 9 in
Maximum length of a section: 240 in
Maximum travel in the X-axis: 11 in
Maximum travel in the Y-axis: 272 in
Maximum travel in the Z-axis: 9 in
Positioning accuracy in the X and Y axes: 0.01 mm
Repositioning accuracy in X/Y axes: 0.01 mm
Maximum speed in X/Y axes: 110 m/min
Maximum rotation speed in the W-axis: 120 rpm
Maximum weight of loaded workpiece: 661 lb
Weight: 6200 lb
Nominal power output: 1.0 kW
Power consumption: 14.0 kW
Source brand: MAX Photonics and Raycus as available options for selection
Power supply: ~3x480 V 60 Hz or other
Ingress protection rating: IP54
Max cutting thickness
Mild steel: 4 mm
Stainless steel: 3 mm
Aluminum: 2 mm
Brass: 2 mm
Note: Images provided in the quote are for reference only, and the actual machines may appear differently.
Specs
Maximum height of a section: 9 in
Maximum length of a section: 240 in
Maximum travel in the X-axis: 11 in
Maximum travel in the Y-axis: 272 in
Maximum travel in the Z-axis: 9 in
Positioning accuracy in the X and Y axes: 0.01 mm
Repositioning accuracy in X/Y axes: 0.01 mm
Maximum speed in X/Y axes: 110 m/min
Maximum rotation speed in the W-axis: 120 rpm
Maximum weight of loaded workpiece: 661 lb
Weight: 6200 lb
Nominal power output: 1.0 kW
Power consumption: 14.0 kW
Source brand: MAX Photonics and Raycus as available options for selection
Power supply: ~3x480 V 60 Hz or other
Ingress protection rating: IP54
