Used Kieselguhr DE Filter – Model NF-10, 10 m² Horizontal Disc Beer Filter

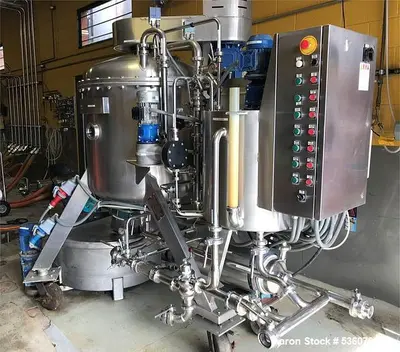

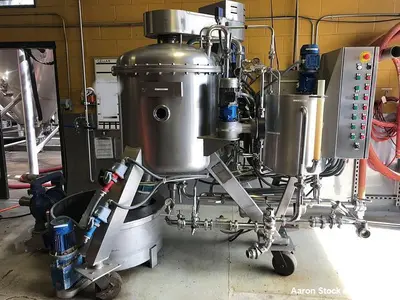

Used Kieselguhr DE Filter Model NF-10. Includes AISI 304 filter vessel, filter discs, piping with butterfly valves and centrifugal pump, Piston dosing pump, Filter pack turning device, Lighted sight glasses at product inlet and outlet, Pressure gauges, sample valves and flow meters, Final filtration disc for residual liquid, Wheel mounted AISI 304 cake collection tray with 10 inch diaphragm pump for discharge. SST horizontal disk beer filter with centrifugal discharge. 10 sq meter filter with a 630-liter capacity bell with 7 Bar rating, and 175 liter dosing tub. Wheel mounted AISI 304 Stainless steel frame. Flow rate per manufacturer is 3-5 bbl/hour/meter, so 30-50 bbl per hour (16.5gpm to 27.5gpm). Electrics are 480 V, 3 Ph, 60 Hz, 34 Amp. Filter bell holds 5 bbls. 7 feet 4 inches tall, 7 feet 10 inches wide, 4 feet 5 inches deep. 1,800 pounds. Year 2002. Last used to filter beer.

Used Equipment Facts About This Machine
Manufacturer Information

Manufacturer: Kieselguhr

Model: NF-10

Year Built: 2002

Category: Diatomaceous Earth (DE) Horizontal Disc Filter

Condition: Used – last in beer filtration

Description
The Kieselguhr NF-10 DE Filter is a 10 m² horizontal disc filter designed for brewery and beverage clarification. Built with an AISI 304 stainless steel vessel and frame, this filter system is ideal for beer, wine, cider, and other beverage applications requiring high-quality clarification.
This unit includes filter discs, butterfly valve piping, centrifugal pump, piston dosing pump, filter pack turning device, and a final filtration disc for residual liquid recovery. The system also features sight glasses at product inlet/outlet, sample valves, pressure gauges, and flow meters for process monitoring.
A wheel-mounted AISI 304 cake collection tray with a 10” diaphragm pump is included for cake discharge. The system has a 630 L bell capacity rated at 7 bar and a 175 L dosing tub. Designed for efficiency, the NF-10 achieves a throughput of 30–50 bbl/hour (16.5–27.5 gpm).

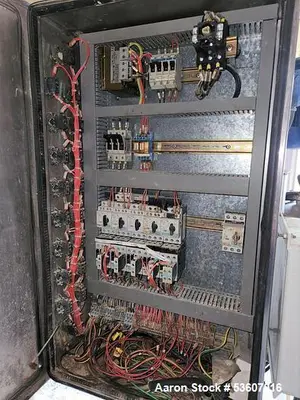

The unit is powered by 480V, 3 Ph, 60 Hz, 34 Amp electrics, weighs ~1,800 lbs, and measures 7’4” H x 7’10” W x 4’5” D.
Specifications

Filter Type: Horizontal Disc DE Filter

Model: NF-10

Filter Area: 10 m²

Bell Capacity: 630 liters (~5 bbl)

Flow Rate: 30–50 bbl/hour (16.5–27.5 gpm)

Operating Pressure: 7 bar

Dosing Tub: 175 liters

Construction: AISI 304 stainless steel vessel, discs, frame, and piping

Pumps:

Centrifugal pump

Piston dosing pump

10” diaphragm discharge pump

Accessories:

Filter pack turning device

Lighted sight glasses (inlet/outlet)

Pressure gauges, flow meters, sample valves

Wheel-mounted cake collection tray

Electricals: 480V, 3 Ph, 60 Hz, 34 A

Dimensions: 7’4” H x 7’10” W x 4’5” D

Weight: ~1,800 lbs

Year Built: 2002

Last Use: Beer filtration

Applications
What might this be used for?

Brewery beer clarification and filtration

Wine filtration

Cider clarification

Juice and beverage polishing filtration

Nutraceutical and botanical extracts filtration

Food-grade syrup clarification

Pharmaceutical and biotech liquid clarification

Edible oil polishing filtration

Chemical solution clarification (non-corrosive)

General beverage industry DE filtration

Example Products Processed

Beer (last use)

Wine and cider

Fruit juices

Botanical extracts

Plant-based beverages

Syrups and flavorings

Cosmetic liquid bases

Nutraceutical liquid extracts

Non-corrosive food-grade oils

Industrial beverage additives
