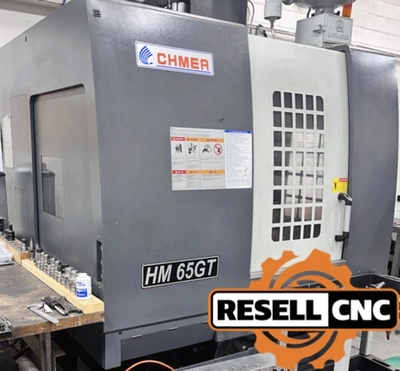

USED 2017 CHMER HM65GT/16

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Intel Industrial Grade PC586 (400)

1 GB Memory (2,000 Block Look-Ahead Processing)

15" Color TFT Display

3D Simulation Preview

Additional Machine Specs: Donaldson Torit Dust Collector

Spindle Air Blast Cleaning

Central Lubrication for High-Speed Spindle

Tool Kit

Swing-Out Pendant Control

Cabinet Heat Exchanger

Fagor X, Y, and Z Linear Glass Scales

B Axis: false
C Axis: false
Control Make Model: Siemens 828D CNC Control
Control Options: Color Monitor, USB, Ethernet / LAN, Manual Pulse Generator / Pendant
Cutting Feed Rate: 393
Electrical: 24 kVA
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Oil Filtration System, Automatic Tool Length Measurement System, Worklight, Oil Chiller
Max Tool Diameter: 0.787
Max Workpiece Weight: 660.0
Probe Make Model: Blum Probe TC52
Programmable Tailstock: false
Rotary Table Trunnion: None
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 20
Spindle Nose To Table Top: 5.80" - 17.72"
Spindle Speed: 30000.0
Spindle Taper Other: HSKE50
Spindle Taper Type: Other
Sub Spindle: false
Tailstock: false
Tool Changer Type: Carousel
Tool Magazine Capacity: 16.0
Twin Turret: false
Vertical Table Pallet Size: 21.6" x 26"
X Travel: 23.6
Y Axis: false
Y Travel: 19.7
Z Travel: 11.8
