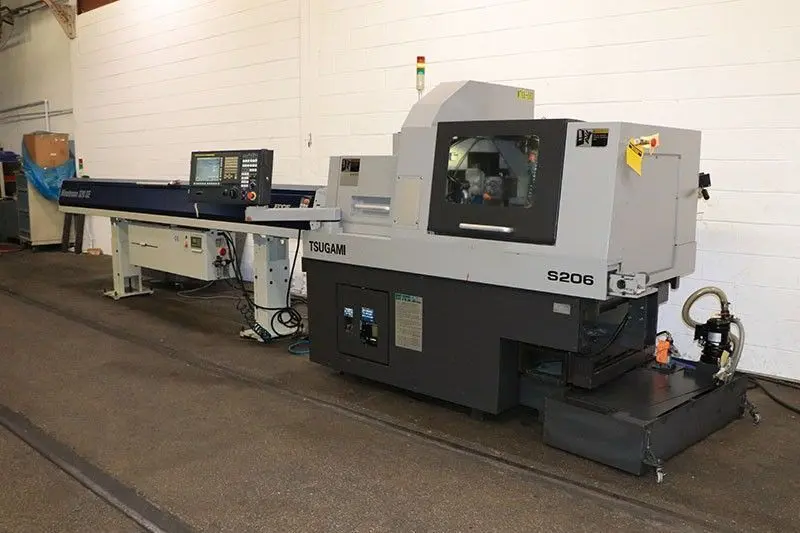

USED 2012 TSUGAMI S206

Tsugami S206 CNC Swiss Lathe, New in 2012 with Magazine Barfeed, Mist Collector

Machine Hours (5/2025)
Power On: 67,800

General Specifications:
Bar Diameter: 20mm (3/4")
Machining Length: 210mm (Direct Drive Rotary GB) /250mm (Static Guide Bushing)/ 80mm (Carrier Type Rotary GB) / 45mm (Bushingless)
Drilling Diameter: 10mm
Tapping Diameter: M8
Deep Hole Drilling Diameter: 8mm
Back Spindle Chucking Diameter: 20mm
Back Spindle Drilling Diameter: 8mm
Back Spindle Tapping Diameter: M6
Tool Spindle Drilling Diameter: 6mm (front tool post/back tool post) /8mm (rear tool post)
Tool Spindle Slotting Diameter: 30mm (T1)
Main Spindle Speed: 200 - 12000 rpm
Back Spindle Speed: 200 - 12000 rpm
Rotary Guide Bushing: 200 - 8000 (carrier type) / 200 - 12000 (direct drive type)
Tool Spindle Speed: 200 - 8000 rpm
Tool Storage Capacity (std/max): 24 pcs / 35 pcs
Tool Size: 12 x 12 x 100 mm
Rapid Traverse rate: 32 m/min (X1, Y1: 24 m/min) / (Y2: 15 m/min)
Main Spindle Motor: 2.2 / 3.7 kW
Back Spindle Motor: 1.5 / 2.2 kW
Tool Spindle Motor: 0.75 / 1.1 kW (Front tool post) / 1.0 kw (rear tool post)
X1-X2-Z1-Z2-Y2 Axes Motors: 0.5 kw
Y1 Axis Motor: 0.75 kW
Lubricating Pump: 3 W
Power Source Requirements: 14.3 kVA
Compressed Air Requirement: 0.4 MPa or above
Air Discharge rate: 40 NL/min

Machine Weight: 3200 kg (7055 lbs)
Machine Dimensions: 2110 x 1200 x 1885 mm (83" x 47" x 74")

*Thread Whirling Attachment NOT Included*
Fanuc 32i-B CNC Control
Edge Minuteman 320SE Magazine Barfeed
MP Systems High Pressure Coolant System
Fire Suppression System
Mist Collector
Parts Conveyor
Parts Catcher
Work Light
