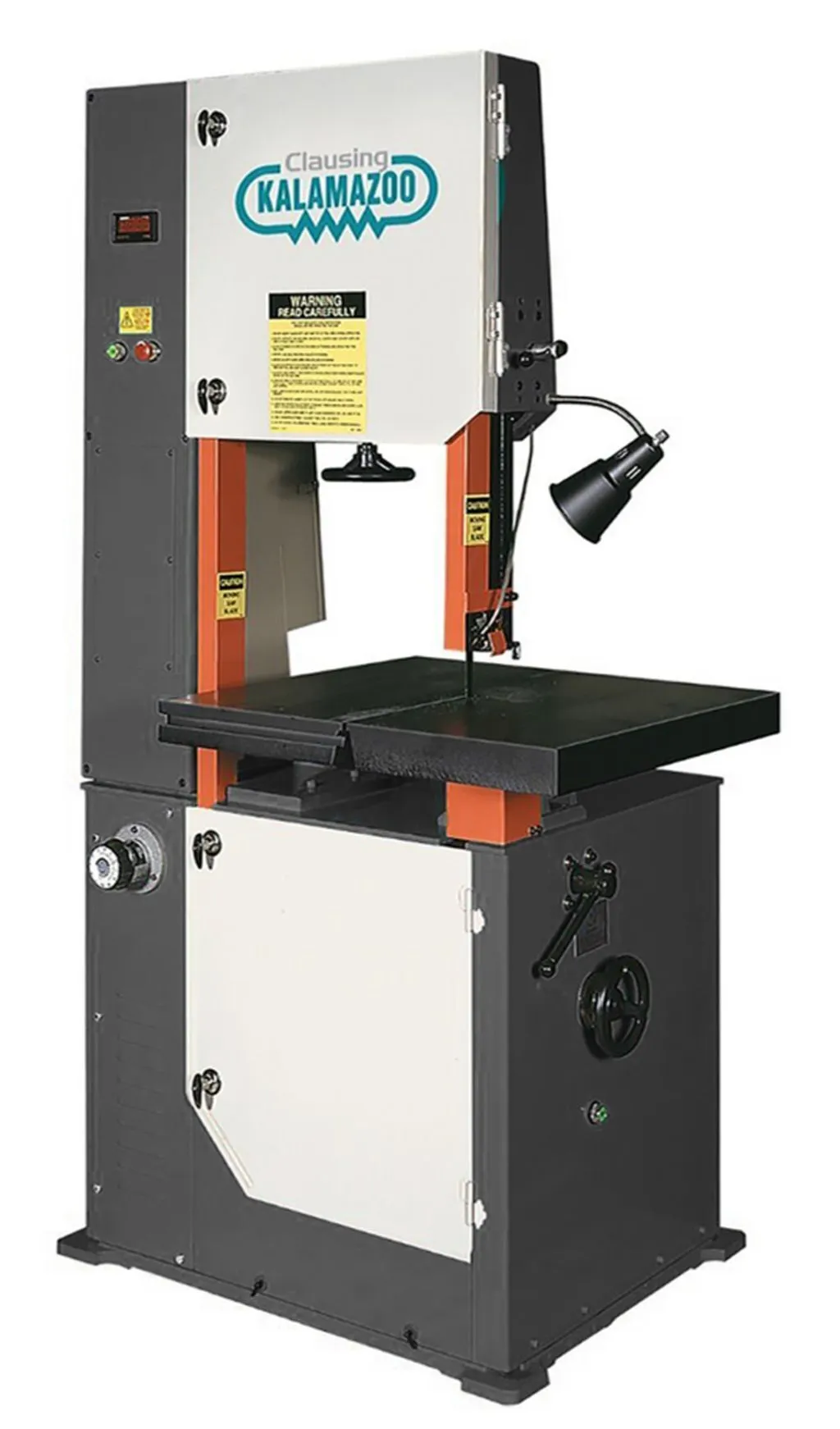

NEW 2025 CLAUSING KALAMAZOO V2012F

Specifications:
• Machine Style..........Vertical Manual
• Drive Type..........Motor to Gearbox
• Maximum Capacity Throat Width (inch)..........20
• Maximum Capacity Height (inch)..........12
• Work Table Size (inch)..........26-3/4 x 29
• Voltage..........230 or 460
• Phase..........3
• Coolant System..........Chip Blower
• Blade Width (inch)..........1/8” – 1”
• Blade Length (inch)..........160.5
• Blade Speeds (SFPM)..........50-5200
• Blade Guide Type..........Chevron
• Motor Horsepower..........3
• Machine Size (inch)..........51 x 44 x 81
• Machine Weight (lbs.)..........1390

Machine Features:
• Magnetic starter with 110V control circuit and overload protection
• Dual range transmission
• 3 Hp Drive motor
• 26-34” x 29” fixed heavy duty cast iron table with 2 way tilt 15 degrees left/15 degrees left
• Sets of (4) Chevron type blade guides, sizes 1/16”, 1/8”, 3/16”, ¼”, 3/8” , ½” , 5/8”, ¾” and 1” Back-up rollers in blade guide brackets
• Bonded rubber band wheels
• 110V work light
• Built-in air chip blower
• Blade tension indicator
• Blade speed indicator
• Rip Fence
• Locking band wheel doors
• 2 year limited warranty
