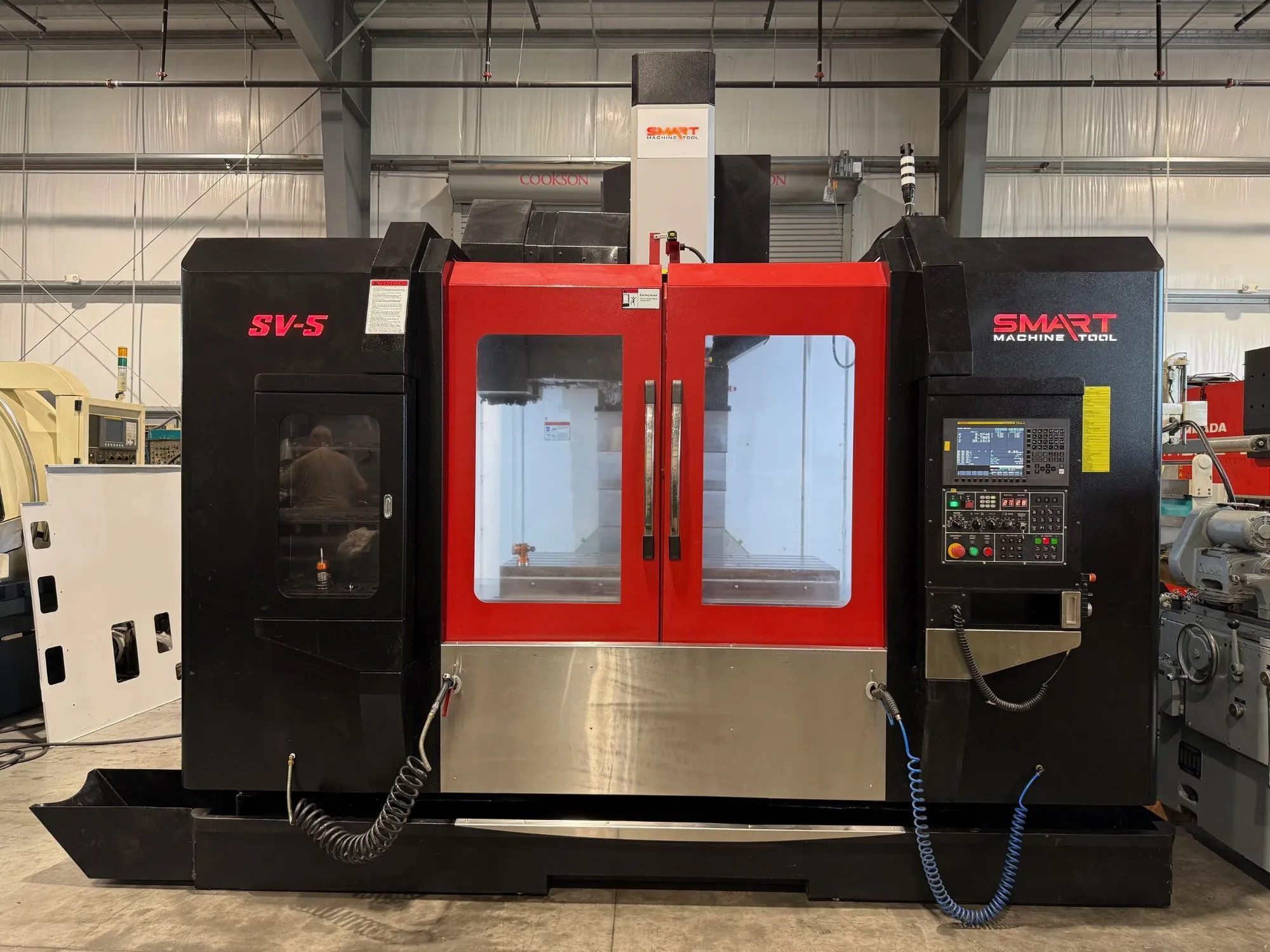

SMART SV5 CNC Vertical Machining Center 2023’ Prewired 4th #7710
| X axis | 51.18" | 1,300 mm |
| Y axis | 27.56" | 700.02 mm |
| Z axis | 27.56" | 700.02 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | Cat 40 Big Plus | Cat 40 Big Plus |
| Table-W | 57.09" | 1,450.1 mm |
| Table-L | 25.59" | 649.99 mm |
| Dimensions | 102” x 150” x 110”H | 102” x 150” x 110”H |
| Weight | 18,000 Lbs. | 18,000 Lbs. |
SMART SV5 CNC Vertical Machining Center 2023’ Prewired 4th #7710
Reference # 7710
Model # SV5
Serial # 3782
Year of manufacture- 2023’
Table size- 57.09” x 25.59”
Table load capacity- 3,307 Lbs.
X axis travel- 51.18”
Y axis travel- 27.56”
Z axis travel- 27.56”
Spindle speeds- 12,000 R.P.M.
Spindle taper- CAT-40
Spindle nose to table- 5.91” Min / 33.46” Max
Spindle distance to column- 28.15”
Side mount tool changer- 30 Tool capacity
XYZ Rapids- 1,181 I.P.M.
Cutting feed rate- 394 I.P.M.
FANUC Oi-MF P 10.4” CNC Control
Machine hours- Operation time- 848 Hours Cutting time-995
RENISHAW Probe & Receiver and Touch off
Prewired for 4th axis
Spindle Chiller
High Speed Machining
200 Look ahead
Coolant bed Flush
Coolant through spindle 290 P.S.I.
Rigid Tapping
3 Coolant Pump & Tank
25 H.P. Spindle motor
Machine is wired for 220 volt / 3 phase / 60 H.Z.
Machine weight- 18,000 Lbs.
Machine dimensions- 102” x 150” x 110”H
Machine location- F.O.B. Sarasota, Florida
