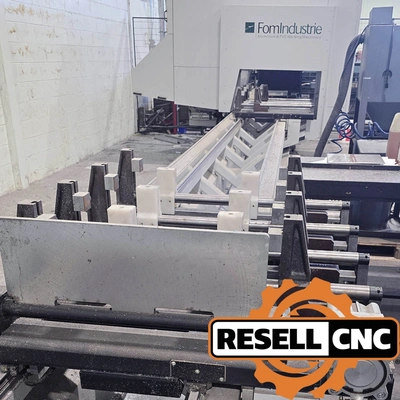

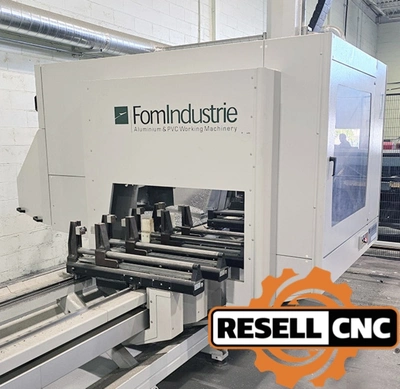

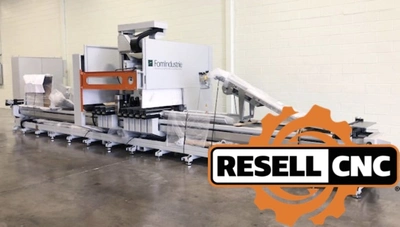

USED 2017 FOM Axel 75 5-Axis Router

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Software Options:

Software License for FSTCam Office Program

FST Solid 5 Axes - Machine Recognition Module

Electronic Equipment "Power-M"

Windows 7

Software License for Tappping Cycle

(3) Cut & Divide Kit

Data-Converter from a Non-Fom Protocol

Software License for Data Import in NCX Format

Additional Machine Specs: Standard Specs:

Sawblade Ø500mm and Tool Holder

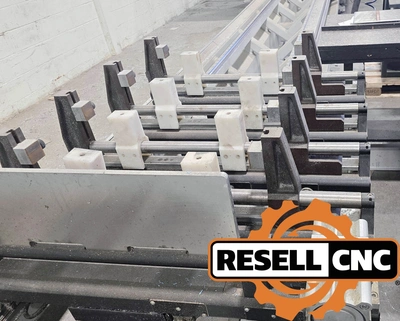

(6) Pneumatic Clamps with NC Independent Positioning

Head Guard Protecting the Working Area

Photoelectric Cell Barrier

Microdrop Tool Lubrication

Electric Cabinet Cooling System

Rear and Side Fences with Swing Gate

Mechanical Chip Conveyor Belt

Dual Station

Flowdrill Kit with Cooling System



Additional Specs:

Wireless Bar Code Optical Reader

B Axis: false
C Axis: false

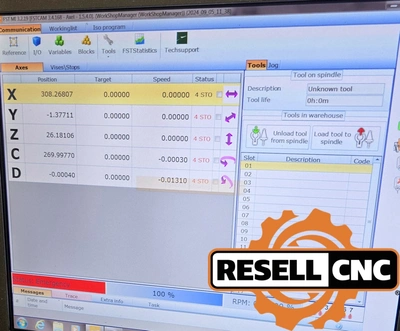

Control Make Model: OMEGA 200 CNC Control
Electrical: 480 VAC
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Tool Diameter: 3.15
Max Tool Diameter Adjacent: 19.69
Max Tool Length: 9.45
Max Tool Weight: 17.64
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false

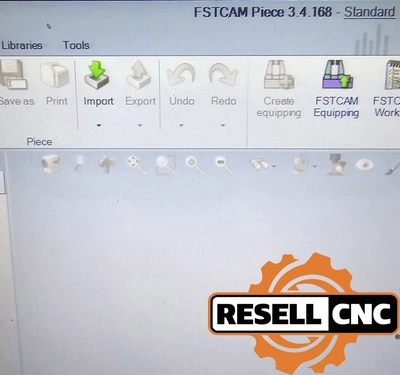

Software: FSTCam Software (5 Axes Version)

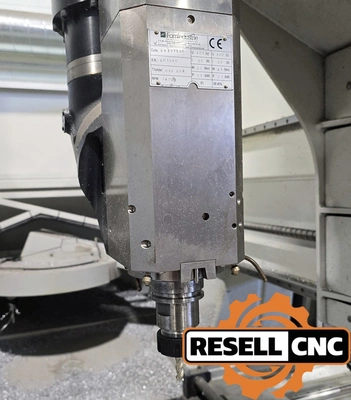

Spindle Motor: 21
Spindle Speed: 19000.0
Spindle Taper Other: HSK-E63
Spindle Taper Type: Other
Sub Spindle: false
Tailstock: false
Tool Change Time: 6s
Tool Magazine Capacity: 20.0
Tool Positions: 20.0
Twin Turret: false
X Travel: 358.0
Y Axis: false
Y Travel: 52.0
Z Travel: 30.0
