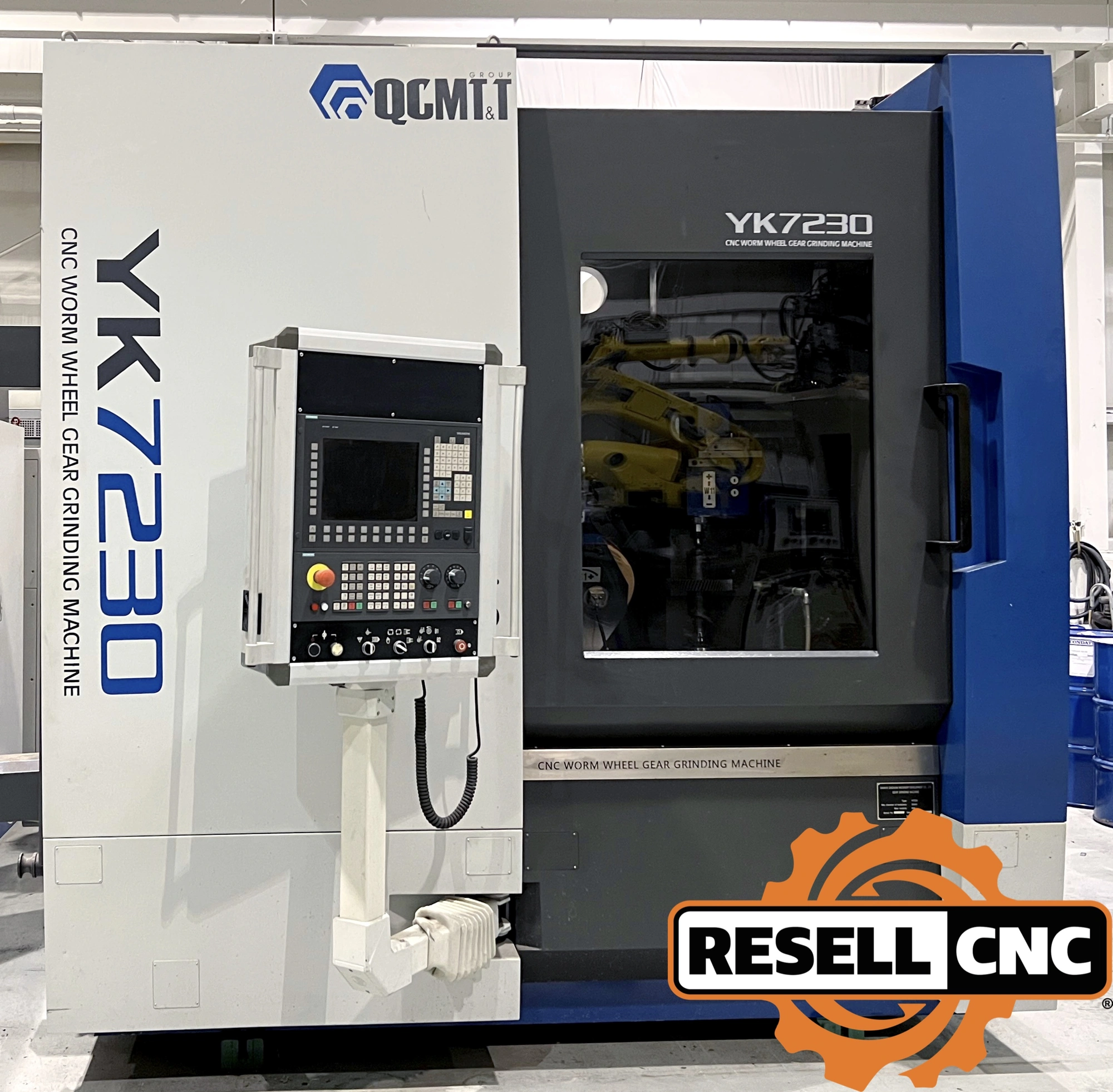

USED 2017 QC American YK7230

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Fully Automatic Control

Multiple Grinding Mode Selection

Profile and Longitudinal Modification

Additional Machine Specs: Technical Data:

Outside Diameter: 0.79" ~ 11.81" (15.75")

No. of Teeth: 5 ~ 600

Module: 0.04" - 0.24"

Max. Face Width: 11.81"

Max. Helix Angle ±45º

X-Axis / Radial Stroke of Column: 15.75"

Y-Axis / Tangential Stroke of Carriage: 8.66"

Z-Axis / Axial Stroke of Slide: 16.93"

Distance from Workpiece Spindle End to Tailstock Center: 9.06" ~ 34.25"

Grinding Wheel:

- Spindle Motor: 21 HP

- Speed: 45 ~ 90 RPM / 2,200 ~ 4,000 RPM

- Size: 11.81" x 6.3" x 4.92"



Options:

Automatic Adjustment of Cooling Nozzle Position

Auto Loading System

Auto Tool Alignment

B Axis: false
C Axis: false
Control Make Model: Siemens CNC Control
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Y Axis: false
